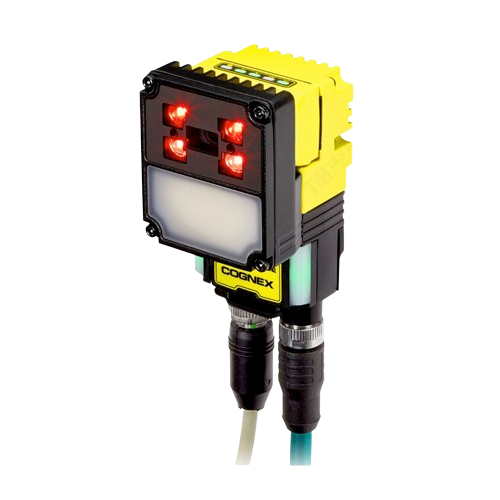

Cognex DM290X-06-LM-05 Barcode Readers (1/3-inch CMOS; 1440 x 1080 pixels)

Image Sensor: 1/3-inch CMOS, global shutter

Image Sensor Properties:

Diagonal size: 6.21 mm

Pixel size: 3.45 μm (H)

Image Resolution: 1440 x 1080 pixels

Lens Options: 6.2 mm or 16 mm High Speed Liquid Lens

Electronic Shutter Speed:

Minimum exposure: 43 μs

Maximum exposure: 200 ms (with external illumination)

Acquisition: Up to 45 Hz

Lighting

Multi-Purpose Integrated Light: 4 LED lights (red), and 1 Diffused light (white) for 6.2 mm and 16 mm lens

Front cover options: (2) polarized, (2) direct and diffuse.

Mini Light: 4 LED high-powered lights (red) for 6.2 mm and 16 mm lens

Front cover options: polarized, half-polarized and clear.

Status Outputs 5 status LEDs, audible beeper, 2 visual indicator lights

Discrete Inputs: 2 opto-isolated, 2 configurable

Discrete Outputs: 2 opto-isolated, 2 configurable

Power: 24 V DC +/- 10%1

Power Consumption: ≤ 7.5 W

Weight

Multi-Purpose Integrated Light 6.2 mm Model: 214 g

Multi-Purpose Integrated Light 16 mm Model: 234 g

Mini Light 6.2 mm Model: 194 g

Mini Light 16 mm Model: 169 g

Sensor Temperature: 0-70 °C (32-158 °F)2

Storage Temperature: -10-60 °C (14-140 °F)

Operating and Storage Humidity: <95% non-condensing
