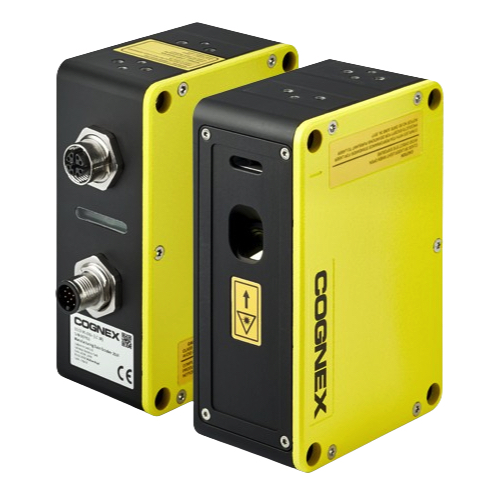

Cognex 3D-L4000 Vision System (44.00 mm; 33.00 mm; 36.00 mm; 39.00 mm)

Dimensions (L x W x H): 150.5 mm x 101 mm x 45 mm

Weight: 0.94 kg

Measurement range (height): 44.00 mm

Near field of view (width): 33.00 mm

Middle field of view (width): 36.00 mm

Far field of view (width): 39.00 mm

Data points/profile sensor: 960 points

Top X solution: 34.4 μm

Bottom X solution: 40.6 μm

Top Z solution: 1.7 μm

Bottom Z solution: 2.7 μm

Top Z repeatability: 0.5 µm

Bottom Z repeatability: 0.5 µm

Z linearity: 0.06% of full scale (F.S.)

Operating temperature: 0–45 °C (32–113 °F)

Storage temperature: -20–70 °C (-4–158 °F)

Humidity: <80% (non-condensing)

Vibration: 10 to 57, dual amplitude 1.5 mm X, Y, Z, 3 hours per direction

Standard: IP65

Trigger: Input voltage limits: Trig+ - Trig - = -24 VDC to +24 VDC / Input ON: >10 VDC (>6 mA) / Input OFF: <2 VDC (<1.5 mA)

Interface: Gigabit Ethernet interface / Integrated link and traffic LEDs / Standard M12-8 X-coded female connector

Software Compatibility: VisionPro 9.9 SR1, Cognex Designer 4.4.3

Vision Tools: 3D Pattern Finder, Height, Tilt, Plane-fitting, Volume and Cross-section, PatMax®, IDMax®, and OCRMax™
