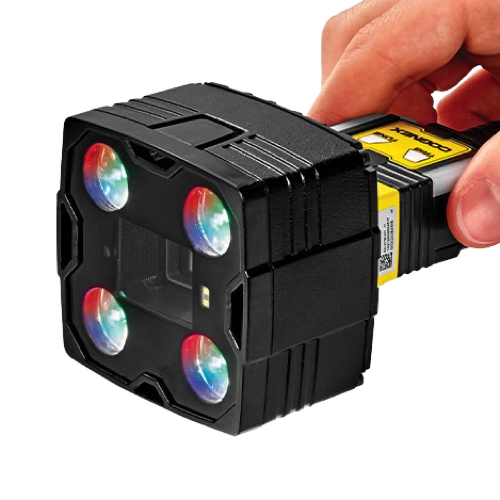

Cognex 2801M-24420-EO Vision In-Sight (1.6 MP; 1 /2.8 CMOS monochrome)

Image Sensor: 1 /2.8 CMOS monochrome

Sensor Properties: 6.17 mm diagonal, 2.8 μm square pixels

Resolution: 1.6 MP (1440x1080)

Electronic Shutter Speed: Min. exposure: 29 μs / Max. exposure: Up to 10 ms (internal illumination) / Up to 200 ms (external illumination)

Lens Option: Multi Torch: 8 mm (High Speed Liquid Lens or manual focus lens)

Lighting: Multi Torch: High-Powered Multi-Color 4 LED ring light (red, green, blue, white)

Connectivity: Ethernet interface

Power Supply: 24V DC +/- 10%

Weight: 6.2 mm: 141 g; 16 mm: 169 g; Multi Torch: 290 g; Right-angle configuration adds 50 g

Operating Temperature: 0–40 °C (32–104 °F)

Storage Temperature: -10~60 °C (14–140 °F)

Humidity: <95% non-condensing

Protection Rating: IP67

RoHS Certified: Yes

Approvals: EU CE, US FCC, TUV CB NRTL IEC 61010

Toolset: EasyBuilder, EL Read
