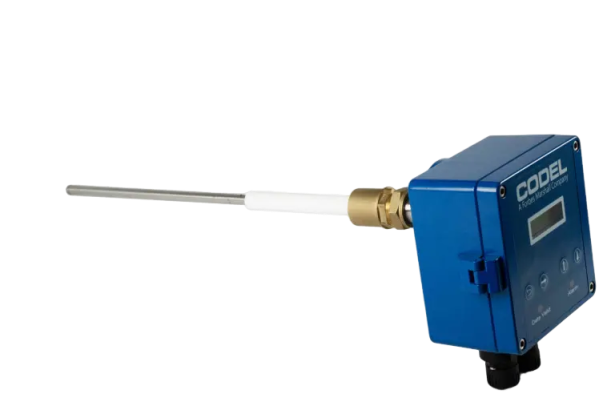

Codel EnergyTech 600 Dust Monitor (0 to 6500 mg/m³)

Operating Principle: Triboelectric

Certification: EN15859 Filter Dust Monitor

Operating Range: 0 – 6500 mg/m³

Resolution: 0.01%

Response Time: 10 seconds

Alarm Level: Programmable by user

Probe Lengths: 250, 500, 750 & 1000 mm

Flue Gas Temperature: 0°C to +250°C (Option up to 600°C)

Ambient Temperature: -20°C to +50°C

Power Supply: 85 – 265 V AC (24 V version available)

Construction: Powder coated aluminium casting, weatherproof to IP67 (NEMA 4)

Dimensions (mm): H160 × W160 × D90

Mounting Arrangement: Supplied 1" BSP, 100 mm long stub pipe

Accuracy: +0.1%
