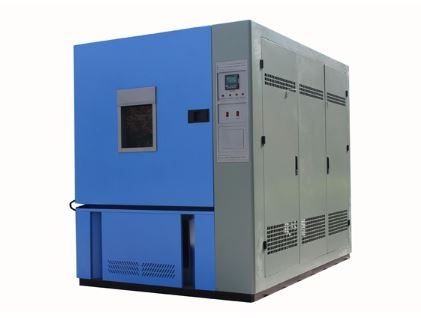

Symor THS-500 Constant Temperature Humidity Test Chamber

Interior Dimension W*D*H (mm): 800×700×900

Exterior Dimension W*D*H(mm): 1350×1300×2200

Temp. Range: 0°C~+100°C

Humidity Range: 20% ~ 98% R.H

Humidity Bias: +2/-3% R.H

Temp. Fluctuation: ≤±0.5°C

Temp. Uniformity: ≤2°C

Heating Rate: 2~3°C/min

Cooling Rate: 0.7~1°C/min

Exterior Material: Steel plate with electrostatic spraying

Interior Material: Reinforced mirror SUS Number 304 stainless steel

Insulation: Polyurethane foam

Controller: 5.7 inch TEMI880 Programmable uch screen LCD controller

Circulation System: Temperature low-noise motors, single cycle, plus the long axis, stainless steel multi-leaf type centrifuge fan

Water Supply: Automatic water supply, with water shortage alarm function

Humidification Mode: Shallow slot humidification, electric heating steam humidification mode

Dehumidification Mode: Refrigeration dehumidification mode

Refrigeration: Unit cooling mode / Dual cooling method (air-cooled),according to chamber size and specific temperature,

R404A/R23 refrigerant, France "TECUMSEH" hermetic refrigeration compressors

Heater: NiCr heater

Cooler: Copper tube aluminum fin cooler

Timing: 0.1~999.9(S.M.H)

Security Devices: Leakage and outage protection,over-temperature protection,water shortage protection

Standard Configuration: One observation window(Resistant to high and low temperatures hollow toughened glass),

a fluorescent lamp, two layer stainless steel shelves

Power Supply: AC220V·50HZ/380V·50HZ or customized
