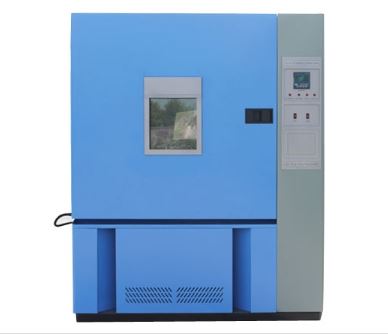

Symor TGDJS-100-A Temperature Humidity Test Chamber

Interior Dimension W*D*H (mm): 500×400×500

Exterior Dimension W*D*H(mm): 1050×1030×1750

Temp. Range: -20°C~+150°C

Humidity Range: 20% ~ 98% R.H(5%-98%RH is available,5% needs a dehumidifier)

Humidity Bias: +2/-3% R.H

Temp. Fluctuation: ≤±0.5°C

Temp. Uniformity: ≤2°C

Heating Rate: 2~3°C/min

Cooling Rate: 0.7~1°C/min

Exterior Material: A3 steel plate,surface electrostatic spraying

Interior Material: Reinforced mirror SUS Number 304 stainless steel

Insulation: Polyurethane foam

Controller: 5.7 inch Temi880 Programmable LCD controller

Circulation System: low-noise motors, single cycle, long axis and stainless steel centrifuge fan

Water Supply: automatic water supply, with water shortage alarm function

Humidification Mode: Shallow slot humidification, electric heating steam humidification mode

Dehumidification Mode: Refrigeration dehumidification mode

Refrigeration: Unit cooling mode / Dual cooling mode (air-cooled),according to specific requirement,

Refrigerant R404A/R23, France "TECUMSEH" hermetic refrigeration compressors

Heater: NiCr heater

Cooler: Copper tube aluminum fin cooler

Timing: 0.1~999.9(S.M.H)

Security Devices: Leakage and outage protection,compressor over-pressure,overheat,over-current protection,

overload fusing protection,audio signal alarm

Standard Configuration: One observation window(Resistant to high and low temperatures hollow toughened glass),

a fluorescent lamp, two layer stainless steel shelves

Power Supply: AC220V·50HZ/380V·50HZ or customized
