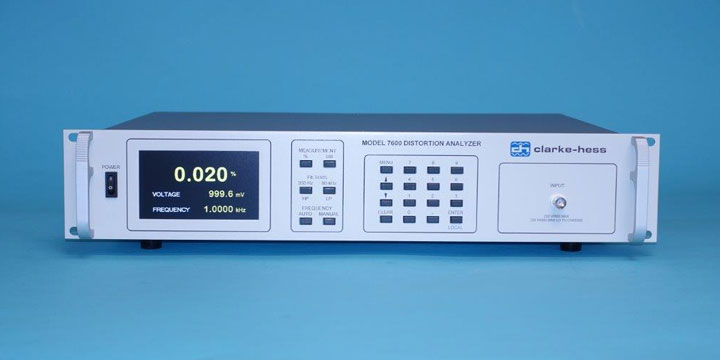

Clarke-hess 7600 Distortion Analyzer (0.1% ~100%, 10 Hz ~ 600 kHz)

Fundamental Frequency Range: 10 Hz to 600 kHz

Distortion Measurement Range; 0.1% to 100%

Voltage Input Range: 0.3 to 200V

Resolution: 0.001%

Distortion Accuracy

Range: 10Hz - 600kHz / 30 Hz – 300 kHz

100% to 0.3%: ±3% of Full scale / -

0.1%: ±6% of Full scale / ±3% of Full scale

Full scale distortion ranges are: 0.1%, 0.3%, 1%, 3%, 10%, 30%, and 100%

Voltage Accuracy

Range: ±2% / ±5%

0.3V – 30V: 10 Hz – 1 MHz / 1 MHz – 3 MHz

30V – 200V: 10 Hz – 300kHz / 300 kHz – 500 kHz

Instrument Induced Distortion

5Hz to 200kHz : -70 dB

200kHz to 600kHz: -64 dB

Second Harmonic Accuracy for a fundamental of:

10 Hz to 20 Hz : ±1 dB

20 Hz to 20 kHz : ±0.6 dB

20 kHz to 100 kHz: ±1 dB

100 kHz to 300 kHz : +1 dB, -2 dB

300 kHz to 600 kHz : +1 dB, -3 dB

Max input: 200Vrms

Input impedance: >110 kΩ || <70pF

Coupling: AC

Frequency Accuracy: 0.1%

Residual Noise: 25 uV

350 Hz High Pass Filter: 350 Hz ±35 Hz Third order Butterworth; 60 dB/decade

80 kHz Low Pass Filter: 80 kHz ±8 kHz Third order Butterworth; 60 dB/decade

General

Display: 4.3” High Resolution Color TFT

Digital Interface: IEEE-488.2, USB

Size :Approximately 17" W x 3.5" H x 13” D

Temperature range: Operating: 0° to 40°C Within specification: 23°C ± 5°

Humidity: Within specification: 20% to 50% RHnoncondensing

Storage Environment: Temperature Range: 0° to 50°C; Humidity Range: 15% to 80% RH noncondensing

Weight: Approximately 13 pounds

Power supply: 100V, 120V, 220V, 240Vrms, 47Hz to 63Hz, 30VA max.
