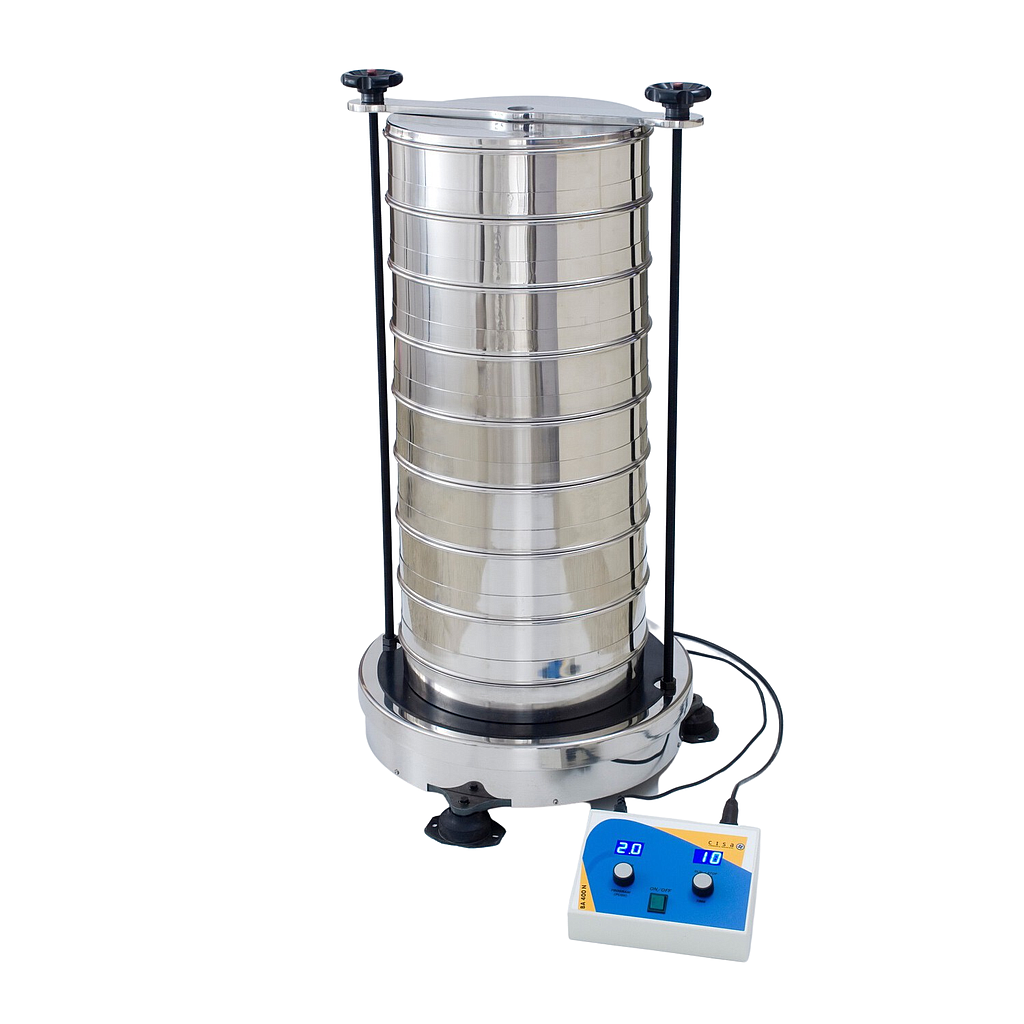

CISA TZBA400N Digital Sieve Shaker (40 µm - 125 mm)

Type of equipment: Electromagnetic. Large format.

Type of sieving: Dry / Wet

Application: Granulometric separation

Maximum weight of sample: 12 kg. (Depending on the characteristics of the product)

Range of sieving: 40 µm to 125 mm

Particle motion: Three-dimensional ( vertical+ rotation, 15 levels of adjustment)

Dynamic of sieving: 3000/3600 vibrations per minute, depending on the type of electrical system (50/60 Hz)

Maximum vibration amplitude: 2 mm

Time of test: 1 to 99 minutes

Work cycle: Time of rotation, to left and right side: from 0 to 99 sec

Time of vibration without rotation: from 0 to 99 sec
Maximum number of sieves: 8 (Ø 400/450 x 100 mm high)

10 (Ø 300/400 x 70/80 mm high)

Diameter of sieves: 300 to 400 mm.

Electrical connection: Single phase with protective earth

Voltage: 230 /125 V - 50 / 60 Hz

Power: 500 W.

Dimensions and Weight: 540 x 160 mm high, 62 kg / Control: 220 x 115 x 85 mm, 2 Kg

See the datasheet to choose suitable options
