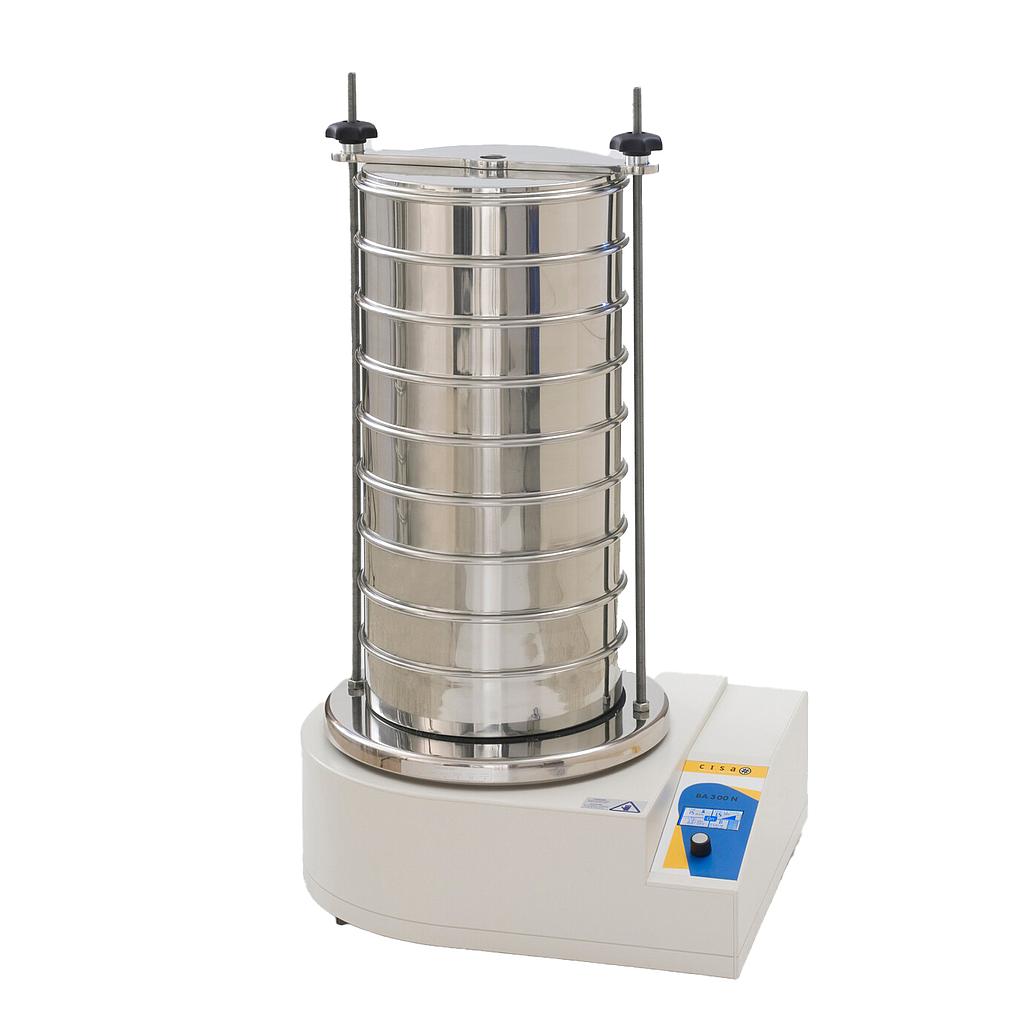

CISA TZBA300N Digital Sieve Shaker (20μm - 125 mm)

Type of equipment: Electromagnetic. Silent.

Type of sieving: Dry / Wet

Application: Granulometric separation

Maximum weight of sample: 6 kg. (Depending on the characteristics of the product)

Range of sieving: 20µm to 125 mm

Particle motion: Three-dimensional

Dynamic of sieving: 3000/3600 vibrations per minute, depending on the type of electrical system (50/60 Hz)

Maximum vibration amplitude: 2 mm

Time of test: 1 to 99 minutes

Work cycle: Continuous/discontinuous mode (with intervals of 10 seconds)

Maximum number of sieves: 8 (Ø 300/305/315 x 70 mm high)

12 (Ø 200/203 x 50 mm high)

Diameter of sieves: 200 to 315 mm.

Electrical connection: Single phase with protective earth

Voltage: 230 /125 V – 50 / 60 Hz

Power: 450 W.

Dimensions and Weight: 565 x 470 x 220 mm, 62 kg

See the datasheet to choose suitable options
