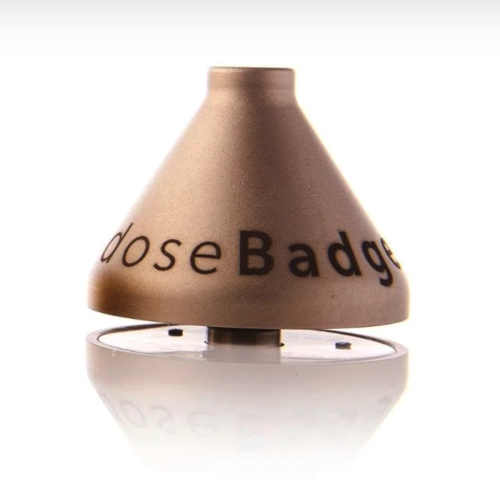

Cirrus research CR110A Heavy-Duty Personal Noise Dosimeter (70dB(A) ~ 130dB(A) RMS, 120dB(C) ~ 140dB(C) Peak)

The CR:110A doseBadge Personal Noise Dosemeter and the RC:110A Reader Unit have

been designed to meet the requirements of IEC 61252:1993 Personal Sound Exposure

Meters and the ANSI S1.25:1991 Personal Noise Dosemeters. The CR:110A doseBadge

and the RC:110A Reader unit must be used as a combination to ensure compliance with

these standards.

Applicable Standards

IEC 61252:1993 Personal Sound Exposure Meters

ANSI S1.25:1991 Personal Noise Dosimeters Class Designation 2AS-90/80-5

RC:110A: Internal Acoustic Calibrator to IEC 60942:2003 Class 2

Measurement Range (Typical): 70dB(A) to 130dB(A) RMS, 120dB(C) to 140dB(C) Peak

Measurement Functions

Overall Measurement Data:

doseBadge Configuration (Serial Number, Date & Time)

Calibration Record

Measurement Duration

Highest Peak(C) Sound Level during the measurement

Overload Exceedence

115dB(A) Maximum Sound Level Exceedence

Battery Status

1 Minute Time History of: LAeq (3dB) or LAVG (4dB or 5dB), Peak(C) Sound Pressure & Battery Level

For 3dB Exchange Rate: LAeq, LEX,8h, LAE, % Dose, Exposure (Pa2h), Estimated % Dose,

Estimated Exposure (Pa2h)

For 4dB & 5dB Exchange Rates:

LAVG, TWA, % Dose, Estimated % Dose

Frequency Weightings

‘A’ for all RMS measurements

‘C’ for Peak Sound Pressure

Configuration Options

Channel 1: Independent User Configuration of:

Exchange Rate: 3dB, 4dB or 5dB

Criterion Level: 80dB, 85dB, 90dB

Criterion Time: 8hrs, 12hrs, 16hrs, 18hrs

Threshold: None, 80dB, 90dB

Time Weighting: None, ‘S’ (Slow)

Memory

CR:110A doseBadge

The CR:110A doseBadge can store up to 24 hours of data in a single measurement

RC:110A Reader

Up to 999 Individual doseBadge Measurements

Power

RC:110A doseBadge

Internal NiMH Battery. Typical Battery Life 24 hours @ 80dB

RC:110A Reader

2 x AA/LR6 with Auto Power Switch Off

CU Series Chargers

CU:195A Mains Power Supply. Fast Charge Option

Output

CR:110A doseBadge

Wireless Infrared to RC:110A Reader Unit

RC:110A Reader

USB 2.0 (which also provides power to the RC:110A Reader)

Dimensions

CR:110A doseBadge: Microphone Apex dia 13.0mm, Base 47mm dia, Height 38mm

Weight

CR:110A doseBadge 51g (1.8oz)

RC:110A Reader 400g (14oz)

Temperature: -10℃ to +50℃ Operating; -20℃ to +60℃ Storage
