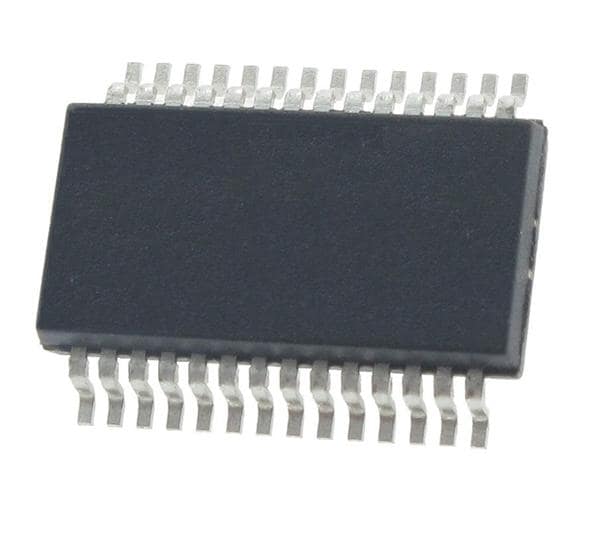

Cirrus Logic WM8716SEDS/V Stereo DAC Stereo DAC (OSC)

Features: High Performance 24 bit, 192 kHz Stereo DAC

Resolution: 24 bit

Unit Weight: 710 mg

Sampling Rate: 192 kHz

Interface Type: SPI

Mounting Style: SMD/SMT

Output Voltage: 1.1 V

Dynamic Range dB: 112 dB

Moisture Sensitive: Yes

Number of Channels: 2 Channel

Description/Function: High Performance 24 bit 192 kHz Stereo DAC

Supply Current - Max: 26 mA

Supply Voltage - Max: 5 V

Supply Voltage - Min: 3.3 V

Operating Supply Current: 26 mA

SNR - Signal to Noise Ratio: 112 dB

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 25 C

THD - Total Harmonic Distortion: - 97 dB
