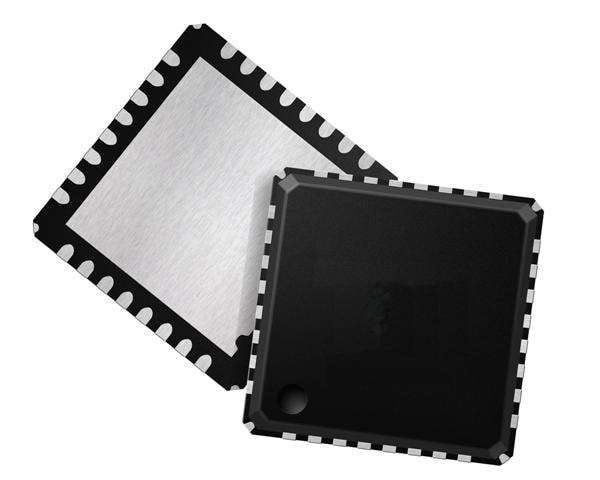

Cirrus Logic CS4265K-CNZ Audio CODEC, Stereo Stereo Audio CODEC 104 dB 192 kHz

Width: 5 mm

Height: 0.95 mm

Length: 5 mm

Bandwidth: 10 Hz to 20 kHz

Resolution: 24 bit

Unit Weight: 188.600 mg

Interface Type: Serial (I2C)

Mounting Style: SMD/SMT

Number of ADCs: 2 ADC

Number of DACs: 2 DAC

THD plus Noise: - 95 dB ADC/- 90 dB DAC

Conversion Rate: 192 kHz

Moisture Sensitive: Yes

Number of ADC Inputs: 4 Input

Supply Voltage - Max: 5.25 V

Supply Voltage - Min: 3.13 V

Number of DAC Outputs: 2 Output

Operating Supply Voltage: 3.13 V to 5.25 V

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 10 C
