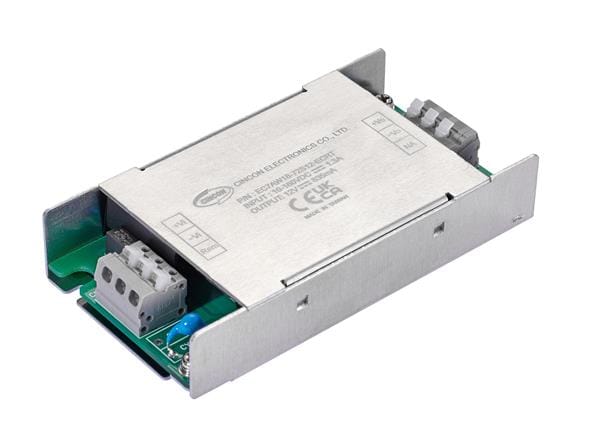

Cincon EC7AW18-72S05-EDRT Isolated 10W 10-160Vin 5Vout 2A DIN

Width: 54.4 mm

Height: 35.1 mm

Length: 101.6 mm

Output Power: 10 W

Input Voltage: 10 V to 160 V

Mounting Style: Chassis

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Input Voltage - Max: 160 V

Input Voltage - Min: 10 V

Input Voltage, Nominal: 72 V

Output Current-Channel 1: 2 A

Output Voltage-Channel 1: 5 V

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C
