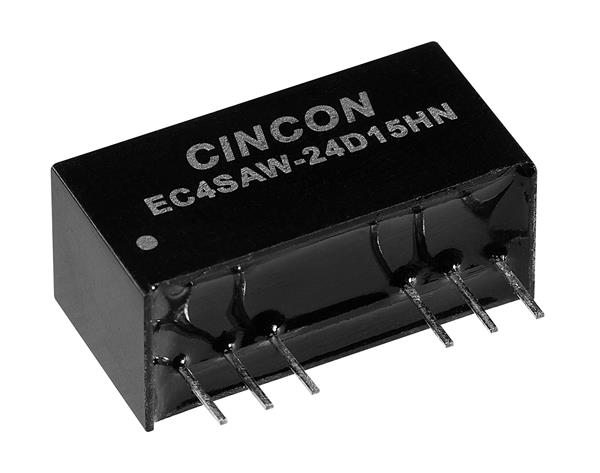

Cincon EC4SAW-24S33HN Isolated 6W 9-36VDCin 3.3VDCout 1500mA

Width: 9.1 mm (0.358 in)

Height: 4.1 mm (0.161 in)

Length: 21.8 mm (0.858 in)

Industry: Industrial

Adjust Type: Fixed

Application: ?Short Circuit Protection

Output Power: 6 W

Input Voltage: 9 VDC to 36 VDC

Mounting Style: Through Hole

Isolation Voltage: 3 kV

Number of Outputs: 1 Output

Input Voltage - Max: 36 V

Input Voltage - Min: 9 V

Input Voltage, Nominal: 24 V

Output Current-Channel 1: 1.5 A

Output Voltage-Channel 1: 3.3 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
