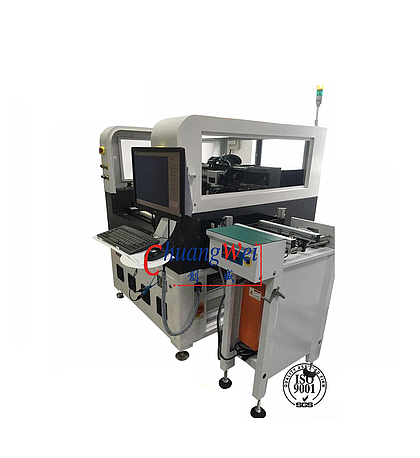

Chuang Wei Inline Laser Depaneling

Laser: Q-Switched diode-pumped all solid-state UV laser
Laser Wavelength: 355nm
Laser Power: 10W/12W/15W/18W@30KHz
Positioning Precision of Worktable of Linear Motor: ±2μm
Repetition Precision of Worktable of Linear Motor: ±1μm
Effective Working Field: 400mmX300mm(Customizable)
Laser Scanning Speed: 2500mm/s (max)
Galvanometer Working Field Per One Process: 40mmх40mm

Product Description:

PCB Depaneling Machine is a kind of CNC router machine used to depanel PCB. It is equipped with positioning accuracy of 0.01mm, cutting speed up to 80mm/s, overall weight of 650KG, and suports PCB thickness from 0.3mm to 3.5mm. This machine is equipped with standard and specialization workstation PCB fixation. It is a reliable and efficient PCB router machine for depaneling PCB.

PCB Depaneling Machine is a CNC router for PCB depaneling. It has the advantages of fast cutting speed, high positioning accuracy, and supports multiple PCB thicknesses. With standard and specialized workstation PCB fixation, it offers reliable and efficient depaneling solutions for PCB manufacturers and makers. It is the perfect PCB router machine for precise and accurate PCB depaneling.
