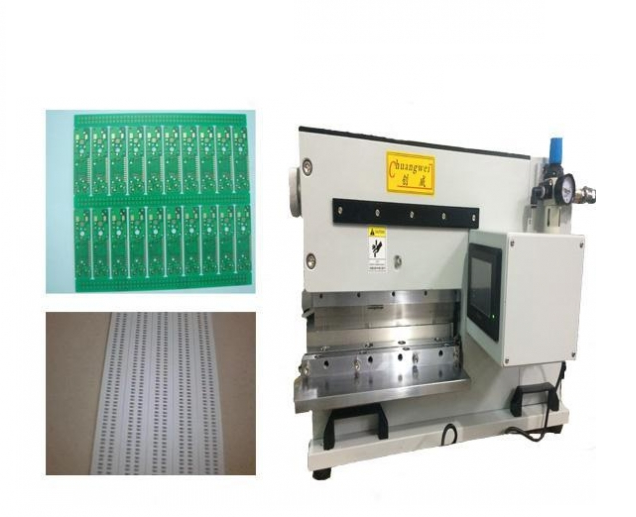

Chuang Wei CWVC-330 Pneumatic PCB Depanelizer

Max. PCB depaneling length: 330mm(Can custom made)
PCB depaneling thickness: 0.3-3.5mm
Voltage and Power: 110V/220V 10W
Working air pressure: 0.5-0.7Mpa
PCB depaneling speed: due to operator skilled level
PCB depaneling machine size: 620*230*400mm
PCB depaneling machine weight: 165kg

Detailed Product Description:

1. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board),LED.

2. Mold make of SKH-11 Steel, Blade is SKH-9(From Japan), rigorous Job! Dedicated

to high strength cutting, and excellent toughness, able to cut metal board

Technical characteristics:

1. Structural precision, the load evenly, to eliminate internal stress

2. Safe, easy to operate

3. For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)

Feature:

1.Motorized Linear Blade Depanelizer

2.Shears boards safely with parts as close as 0.5mm to the score line, including ceramic capacitors

3.Operator foolproof! Panels cannot be inserted into the knives except on the score line

4.Pneumatically driven

5.Handles high components up to 1"

6.Bow waves that can occur with round knives are avoided

7.Easy adjusting of distance between knives
