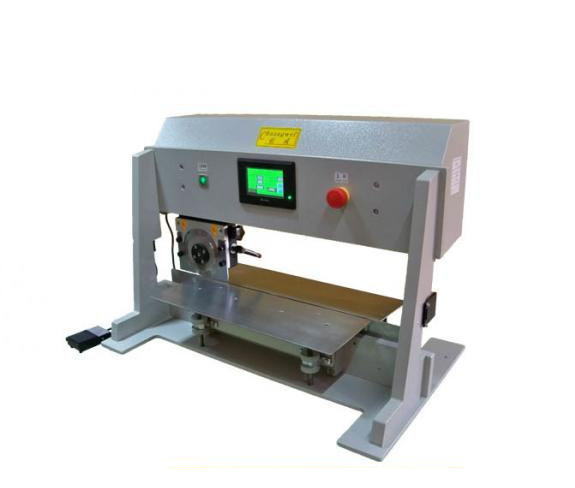

Chuang Wei CWV-1A460 Motorized PCB Depanelizer

Max. PCB cutting length: 460mm
PCB cutting thickness: 0.6-3.5 mm
PCB cutting speed: 100,200,300,500 mm/sec
Blade motion upper circular blade moving automatically
Blade motive power operating mode: motor-driven
Power supply: 110/220v
PCB cutting machine size: 770*510*450mm
PCB cutting machine weight: 55kg

V-CUT PCB singulation machine:

1.Automatic blade moving singulating type and singulate both small and large PCBs fast and economically

2.For various kinds substrate PCB with pre-scored V groove

3.Safety use,easy operation and easy maintanance

4.Low bending stress,no vibration

V-CUT PCB singulation machine features:

1.Firm machine structure be designed to prevent electronic circuit, solder point, and solder singulating area of PCB from damage by unsuitable force.

2.Effectively reduce stress and prevent solder point chap from PCB singulating .

3.PCB singulating speed can be adjusted by the rotary knob.

4.PCB singulating stroke can be set free and setting value can be showed in LCD.

5.Clearance between circular and linear blades are adjusted to fit different V groove depth and compensates for blade wear out.

6.Optional PCB conveyor belt to remove finished PCB singulation .
