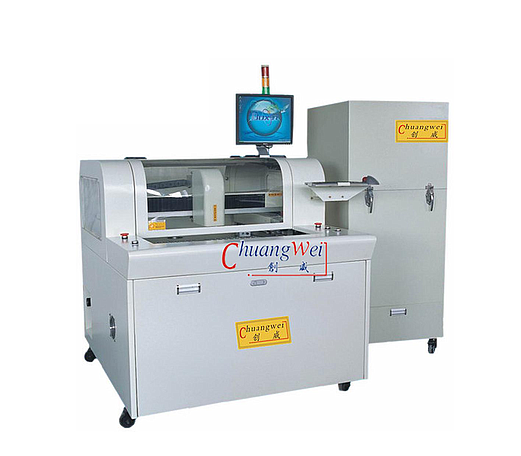

Chuang Wei CW-F01 Depaneling Router

Overall

Dimensions(W*D*H)

1220mm*1450mm*1420mm

Weight

550KG

Height offset

60~110mm

Manipulator

Motor type

JiaBao series

Positioning repeatability

0.001mm

Axis working area(max)

680mm*360mm*50mm

Work station

PCB fixation

standard, specialization

PCB loading/unloading

manual

PCB size (max)

322mm*322mm

PCB thick (max)

5mm

Fixturing

Rigidity fixturing

standard

Fixturing fixation

machinery

Spindle Motor

Power

400W

Spindle

50000rpm/min

Protect

self/wind cooling

Change cutter

Specialization

Routing capability

Cutting speed(max)

100mm/s

Driving speed(max)

3000mm/s

Precision of cutting

0.01mm

Vacuum System

Vacuum power

2.2KW AC 380V

Vacuum

plumb

Utilities

Power

2.2KW AC380V

Air supply

2~5KG/cm2

Programming

Program edit

Inline

Function edit

Line, arc, circula, U-curve

Program storage

HDD

Vision system

SONE colour CCD

milling cutter offset

AUTO

Vacuum setup

AUTO

Operation Monitors

Iindicator

Iindicator Machine state

tool check

Automatic detection tool life, the use of time testing

Motor protect

Have overheating, overload, low voltage protection function

motor over loading check

Have Overload, the line is normal, low voltage protection function

Tool usable time

Automatic detection tool life,

Data statistic

Separate board model, separating count, diverse counting methods

Error record

Software automatically records all alarms memory of machines

III. Accuracy

Axis precision

0.001mm

Cutting precision

0.1mm

IV. Safety

Working area protect

With four sealed protection

Door sensor

Front and rear safety door micro-switch sensor (optional)
