Chromatotec A12000 VOC Analyzer (MFC 0-200 ml/min; 0.5 to 100 ppb)

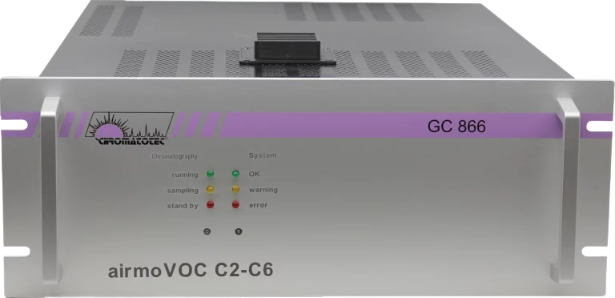

airmoVOC XPERT C2-C6

Light VOC Analysis: C2–C6 (Alkanes, Halogenated Compounds, Light Terpenes)

Detection Limit

10 ppt for Butane

15 ppt for 1.3-Butadiene

Detection Range: 0.5 to 100 ppb / amplification3 in standard

Relative Standard Deviation

< 0.3 % over 48h (RT)

< 2 % over 48h (Conc.)

Results

Data storage (SSD)

4–20 mA current output (option)

MODBUS / JBUS or MGS1 communication protocol (option)

Cycle Time: 30 min in standard (60 min in option)

Gas Supply:

H2 (FID and carrier gas): 30 mL/min (inlet 2 bars; 1/16’’ Swagelok)

Air (FID): 180 mL/min (inlet 3 bars; 1/8’’ Swagelok)

Sample inlet (vacuum pump): 1/4’’ Swagelok

Pneumatic valve: 90 mL / commutation

Cleaner: 10 mL/min (airmoVOC C2–C6 Xpert) for carrier gas

Sample Volume: 20 to 240 mL (programmable) (Sampling time up to 40 minutes)

Sampling Inlet:

Sample by-pass: 20 mL/min

MFC 0–200 mL/min (airmoVOC C2–C6 Xpert)

Sample dryer x2 (airmoVOC C2–C6 Xpert)

Oven Column: High temperature (airmoVOC C2–C6 Xpert)

Power Supply

Main: 230 V / 115 V or 50 Hz / 60 Hz

Battery: 24 V (option)

Electrical Consumption

Mean: 150 VA, Peak: 360 VA

Dimensions and Weight

Rack: 19’’ (4U)

Height: 180 mm

Width: 482 mm

Datasheet
