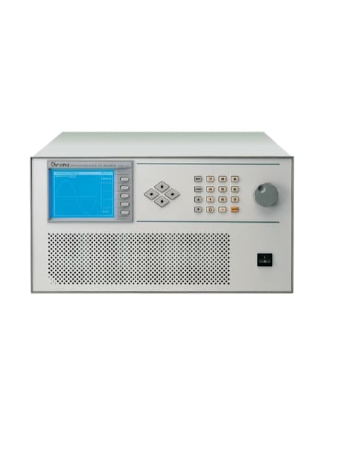

CHROMA 6530 Programmable AC Source

Output Phase: 1

Output Ratings:

Power: 3000VA

Voltage

Range/phase: 150V / 300V / Auto

Accuracy: 0.2% +0.2%of F.S.

Resolution: 0.1V

Distortion *1:

1% (15~45Hz)

0.5% (> 45~500Hz)

1% (> 500~1kHz)

2% (> 1K~2kHz)

Line Regulation: 0.1%

Load Regulation*2: 0.1%

Temp. Coefficient: 0.02% per˚C

Max. Current/Phase:

RMS: 30A/15A (150V / 300V)

Peak:

90A/45A (15~100Hz)

75A/38A (>100~1KHz)

60A/30A (>1K~2KHz)

Frequency

Range: 15 ~ 2kHz

Accuracy: 0.15%

Resolution:

0.01Hz (15 ~ 99.9Hz)

0.1Hz (100 ~ 999.9Hz)

0.2Hz (1k ~ 2kHz)

Input Ratings

Voltage

Operating Range: 1Ø 200~240V±10%VLN

Frequency Range: 47 ~ 63Hz

Current: 23A max.

Power Factor: 0.98 min.under full load

Measurement Voltage/Phase

Range: 0 ~ 150V / 0 ~ 300V

Accuracy (RMS): 0.25% + 0.1% F.S

Resolution: 0.1V

Current/Phase

Range (peak): 0 ~ 140A

Accuracy (RMS): 0.4% + 0.1%F.S.

Accuracy (peak): 0.4% + 0.2% F.S

Resolution: 0.01A

Power/Phase

Accuracy: 1% F.S. ( CF<6)

Resolution: 0.01W

Frequency

Range: 15 ~ 2kHz

Accuracy: 0.01% +2 count

Resolution: 0.01Hz

Others

Efficiency: 80% typical

Temperature

Operating: 0 ~ 40˚C

Storage: -40 ~ +85˚C
