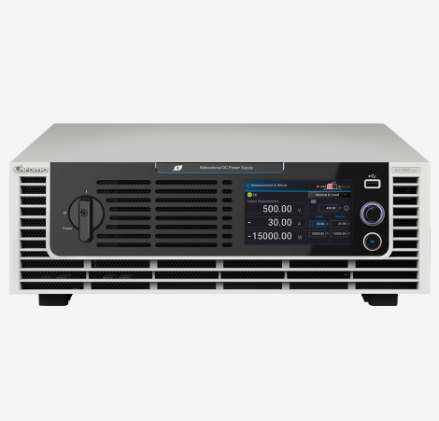

CHROMA 62120D-1200 Bidirectional DC Power Supply (1200V, 40A, 12KW)

Source/Sink Voltage: 1200V

Source/Sink Current: ±40A

Source/Sink Power *1: 12kW

Line Regulation

Voltage: ±0.01% F.S.

Current: ±0.05% F.S.

Load Regulation

Voltage: ±0.04% F.S.

Current: ±0.1% F.S.

Voltage Measurement

Range: 240V /1200V

Accuracy: 0.05% + 0.05%F.S

Current Measurement

Range: 8A / 40A

Accuracy: 0.1% + 0.1%F.S.

Output Noise & Ripple

P-P (20MHz): 840mV

rms (Voltage): 170mV

rms (Current): 30mA

Programming Response Time

Rise Time (Full Load): 10 ms

Rise Time (No Load): 10 ms

Fall Time (Full Load): 10 ms

Fall Time (No Load): 10 ms

Slew Rate Control

Voltage slew rate range (No Load): 0.001V/ms~ 10V/ms

Voltage slew rate range (Full Load): 0.001V/ms~10V/ms

Current slew rate range 0.001A~10A/ms

Minimum transition time (CV): 0.5ms

General Specification

Maximum Remote Sense Line Drop Compensation: 2% of full scale voltage per line (4% total)

Operating Temperature Rage: 0℃~40℃

Storage Temperature Rage: -25℃~70℃

Dimension Size (HxWxD) mm: 133 x 428 x 730 mm / 5.23 x 16.85 x 28.74 inch

Weight (kg): 32 kg/70.5 lbs
