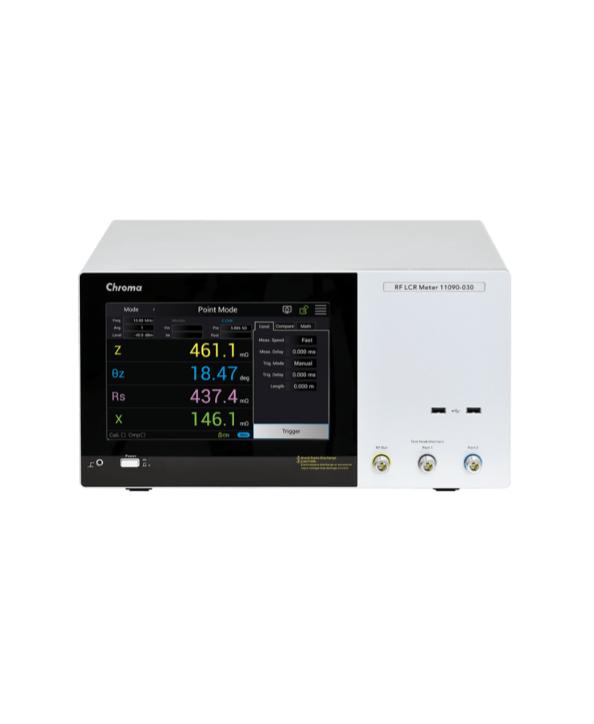

CHROMA 11090-030 RF LCR Meter (100 mΩ ~ 5 kΩ, 100 kHz ~ 300 MHz)

Basic Measurement

Measurement parameters: Z, θz, Y, θy, R, X, G, B, Ls, Lp, Cs, Cp, Rs, Rp, D, Q

Measurement range: 100mΩ~5kΩ

Source

Frequency

Range: 100kHz~300MHz

Resolution

100.0kHz ~999.9kHz: 0.1kHz

1.000MHz ~9.999MHz: 0.001MHz(1kHz)

10.00MHz ~99.99MHz: 0.01MHz(10kHz)

100.0MHz ~300.0MHz: 0.1MHz(100kHz)

Uncertainty: ±10ppm (23℃±5℃), ±20ppm (0℃~40℃)

Oscillator level (1M cable length)

Power range (50Ω load): 0.0894mArms ~ 10mArms

Current range (short): Defined by LC and Vmea measurement accuracy

Voltage range (open): 4.47mVrms~502mVrms

Uncertainty (50Ω load): ±2dB (23℃±5℃), ±4dB (0℃~40℃)

Resolution: 0.1dB

Output impedance: 50Ω (Nominal)

Measurement time: Very Fast (0.5ms) / Fast (0.9ms) / Medium (2.1ms) / Slow (3.7ms)

Averaging factor: 1~100

Measurement accuracy:

Condition for definition of accuracy (23℃± 5℃)

7mm Connector of 3.5mm：7mm adapter connected to 3.5mm terminal of test heads.

Display

Type/Size: 10.1 inch IPS TFT Screen

Resolution: WXGA(1280*800)

Touch Sscreen: Yes

General

Operation Environment: Temperature: 0˚C~ 40˚C, Humidity: 20%~80% RH, Altitude 0~2000M

Storage Environment: Temperature: -10˚C~ 6˚C, Humidity: 20%~90% RH

Power Consumption: 300VA max.

Power Requirement: 100~240Vac ; 50/60 Hz

Size (H x W x D): 235 x 425 x 277 mm

Weight: 17 kg (typical)
