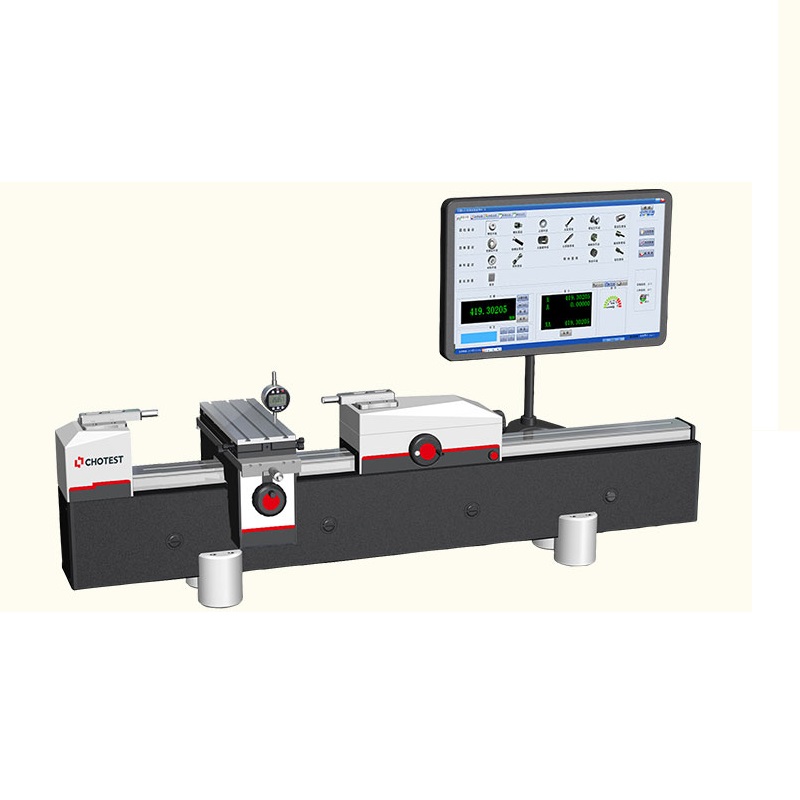

Chotest SJ5100-2000A Universal length measuring machine (0.7~1900mm; 0~2040mm; 0.01μm)
ManufacturerChotest(View more products from this manufacturer)
ModelSJ5100-2000A
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Inside measuring range: 0.7~1900mm
Outside measuring range: 0~2040mm
Indication error: ±(0.25+L/1000)μm
Resolution: 0.01μm
Repeatability: 0.15μm
Max thread pitch: 200mm(Ring gauge) / 250mm(Plug gauge)
Measuring force range: 0.1N, 0.3N, 0.5N, (1~10N) continuously adjustable by hand
Dimension(mm): 2700*400*450
Weight(kg): 350
