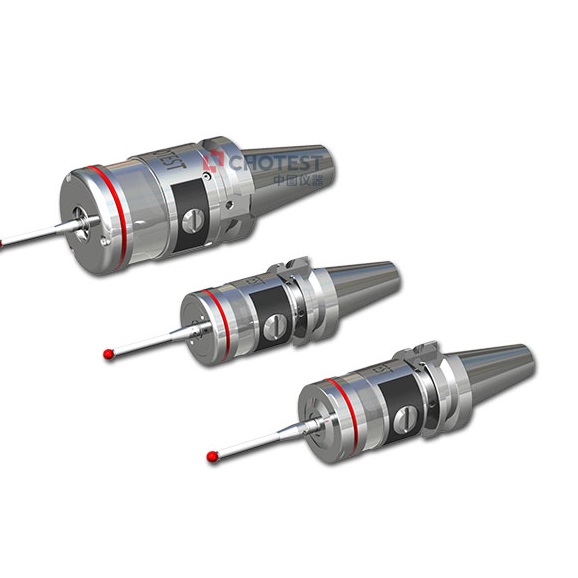

Chotest PO40L Machine Tool Probe
ManufacturerChotest(View more products from this manufacturer)
ModelPO40L
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Kích thước (Đầu dò): φ40 mm* L52mm
Loại truyền dẫn: 360° IR
Khoảng cách truyền dẫn: 5m
Tốc độ quay: Tối đa 1000 vòng / phút
Hướng kích hoạt: ±X/±Y/-Z
Độ lặp lại của kích hoạt một chiều 2δ(*1): 1μm
Độ tràn tối đa: XY:12,5mm +Z:6mm
Datasheet
Technical parameters of the receiver:
1) Transmission type: IR, 360°;
2) Working range: Max 8m
3) Weight: 926g
4) Input voltage: 12V~30V
5) Input current: <100mA, receiving <40mA;
6) Cable to machine controller: dedicated 13PIN shielded cable, 8 meters or 15 meters;
7) Storage temperature: (-25~70)℃,working temperature: (5~55)℃;
Description
Machine tool probe PO series applies 3-point trigger design which is the most stable structure. There is a trigger unit inside the probe. When the stylus is moved radially or axially by external force, the trigger unit is triggered. Then the circuit inside of probe sends a triggering signal to the receiver, and the receiver transmits it to the machine tool, consequently the present coordinates of each axis of the machine tool are recorded automatically. Finally measurement results are calculated according to the coordinate records of related points.
Application
◆ Coordinate setting: set datum point of workpiece, correct coordinate system of workpiece.
◆ Align workpiece: Inspect whether the workpiece is placed accurately, and whether the workpiece is deformed by force of clamping fixture.
◆ Dimension measurement: stage height, length, diameter
◆ Position measurement: holes distance, perpendicularity, angle, etc.
◆ Curved-surface measurement: blade shape, mold surface, complex shape
◆ After-processing inspection: Find the over-tolerance, correct tool compensation
◆ Check whether the workpiece is placed
