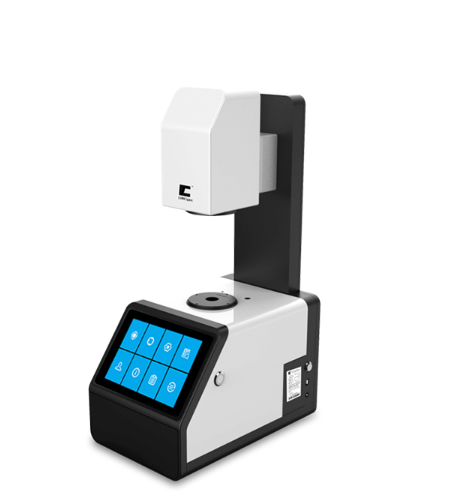

CHN SPEC THC-100 Color Haze Meter (D/0, 400–700 nm)

Optical path structure: D/0

Wavelength range: 400–700 nm

Wavelength interval: 10 nm

Measurement aperture: 21 mm, 7 mm

Measurement conditions:

Light source: CIE-A, CIE-C, CIE-D65, A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CMF,U30,DLF,NBF,TL83,TL84;

Observer’s perspective: 2°, 10°

Measurement time:

Transmittance/haze: about 3s, other chromaticity indicators: 0.6s

Measurement parameters:

Haze (HAZE), total transmittance (T), spectral transmittance, CIE Lab, LCh, CIE Luv, XYZ, Yxy, Hunter Lab, Munsell MI, CMYK, whiteness WI (ASTM E313-00, ASTM E313-73, CIE/ISO, Hunter, Taube Berger Stensby), yellowness YI (ASTM D1925, ASTM E313-00, ASTM E313-73), Tint (ASTM E313-00), metamerism index Milm, APHA, Pt-Co (platinum cobalt index), Gardner (Gardner index), color difference (ΔEab, ΔECH, ΔEuv, ΔEcmc (2:1), ΔEcmc(1:1), ΔE94, ΔE*00)

Transmittance resolution: 0.01%

Transmittance accuracy: Better than ±1%

Transmittance repeatability: ≤0.03 (without preheating, the standard deviation of 30 times of measuring the standard haze sheet with a haze of about 30 at an interval of 3s)

Haze resolution: 0.01%

Haze accuracy: Better than ±1%

Haze repeatability: ≤0.03 (without preheating, the standard deviation of 30 times of measuring the standard haze sheet with a haze of about 30 at an interval of 3s)

Color difference repeatability:

Standard deviation ΔE*ab, within 0.03 (measurement conditions: no preheating correction required, average value of 30 measurements of white glass at 3s intervals)

Pt/Co colorimetric resolution: 0.01

Pt/Co colorimetric range: 0–500

Pt/Co colorimetric accuracy: ≤(5%H+1), H is the standard value

Power supply: DC12V/3A

Display: 7-inch touch screen, Android system

System language: 14 languages

Data interface: USB (Type-B)

Operating temperature range: 5–40°C, relative humidity 80% or lower (at 35°C), no condensation

Storage temperature range: -20 – +45°C, relative humidity 80% or lower (at 35°C), no condensation

Instrument dimensions: Lengthwidthheight: 310 mm * 215 mm * 540 mm

Instrument weight: 5300 g
