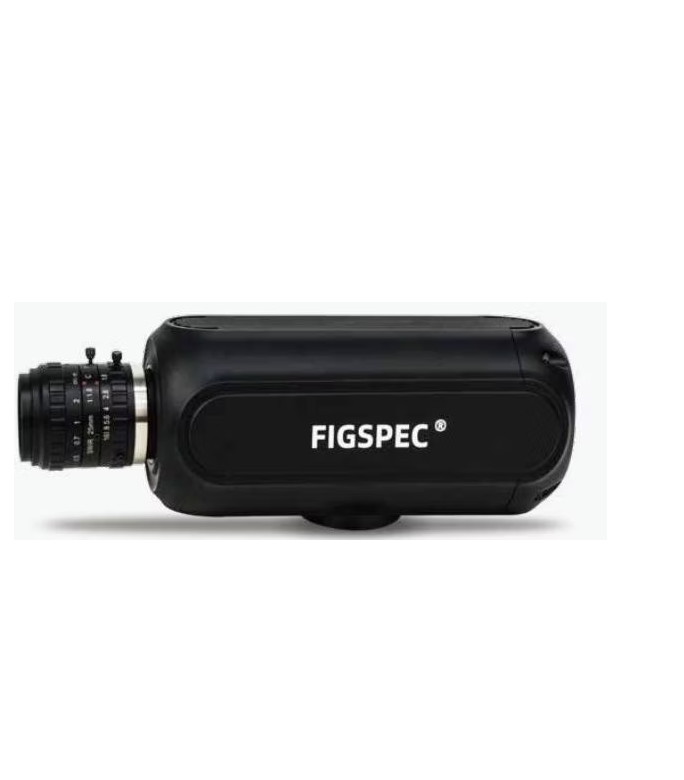

CHN SPEC FS-17 Hyperspectral Camera (900~1700 nm)

Spectroscopic method:  grating

Spectral range: 900-1700nm

Spectral channel: 1024

Spectral resolution (FWHM): 6nm

Slit width: 25um

Transmission efficiency: >60%

Stray light: <0.5%

Number of spatial pixels: 1280

Pixel size: 5um

Imaging speed:  8bit/1024 bands 132 frames/SEC, 12bit/1024 bands 70 frames/SEC, 8bit/512 bands 253fps, up to 1800fps after ROI

probe: InGaAs

SNR(Peak): 600/1

Camera output: start

Camera interface: C-Mount

attachment: Lens, USB cable, power supply

ROI: Multiple regions

dimension: Length x width x height :16.6cmx7.5cmx7.4cm

weight: 700g

Power dissipation: 5W

Datasheet
