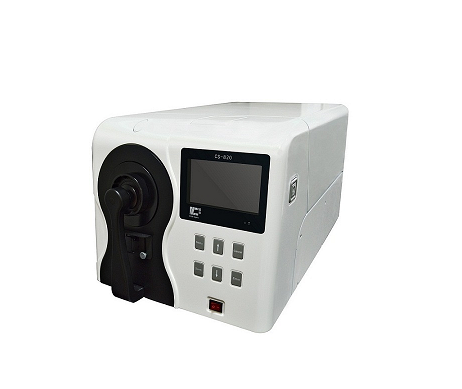

CHN SPEC CS-820 Tabletop Spectrophotometer

Repeatability: color values：ΔE*ab0.015, Maximum 0.03
Inter-instrument agreement: ΔE*ab ≤0.2 (BCRA color charts II，average of 12 charts)
Light source: pulse xenon light
Spectral range: 360nm–740nm
Wavelength interval: 10nm
Band-pass filter: 10nm
Half spectral width: 5nm
Reflectivity range: Reflectivity：0% to 200%
Reflectivity resolution: 0.0001
Measurement time : < 1 second
Transmission: total transmission and direct transmission
Optical configuration: Diffused/8°(Light source/measurement), 15.2cm(6 inch) integration sphere, 2 spectrometers
Working temperature: 15˚ C - 32˚ C (60˚ F – 90˚ F)
Working humidity: < 80% at 0~45℃, no condensation
Power source: 117VAC/50-60Hz，230VAC/50-60Hz
Port: USB
Size: 583*330*304mm(L x W x H)
