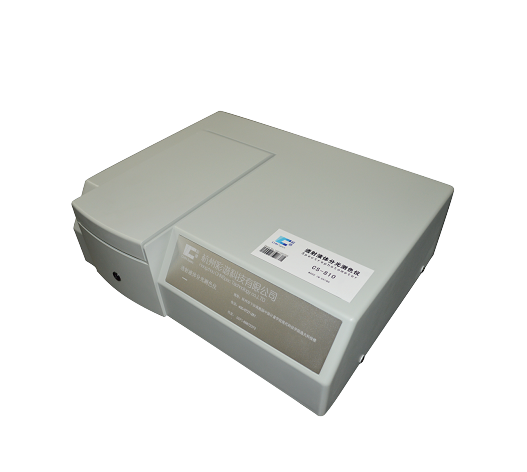

CHN SPEC CS-810 Spectrophotometer

Illumination: d/0, SCS, SCE, ETC
Size of integrating sphere : Φ40mm，Alvan diffused reflection surface coating
Illumination Light source: CLEDs(entire wavelength balanced LED light source）
Sensor: dual light path sensor array
Wavelength range: 400-700nm
Wavelength interval: 10nm
Half spectral width: 5nm
Reflectivity range: 0-200%
Reflectivity resolution: 0.00%
Observation angle: 2°/10°
Measurement time interval: 2 seconds
Measurement time: 0.5 seconds
Interface: USB
Data storage: mass storage
Light source longevity: 5 years, 1.5 million tests
Size: 475*340*150mm(L*W*H)
Weight: about 7kg
Standard accessories: Power cord, Color management software, Driver software, Data line, Black calibration tube, cell holder

CS-810 transmission type liquid spectrophotometer is a high performance spectrometer specially designed for measuring liquid transmittance, absorbance, concentration, chromaticity and other parameters. The instrument adopts D/0 measurement structure and integrates technologies such as full-band light source, single grating optical path spectroscopy system and other real-time calibrations, so that the resolution of the instrument reaches 0.0001, the standard deviation of transmittance is within 0.08%, and the chromaticity value: ΔE*ab 0.015.

D / 0 structure is adopted

Suitable for liquid and glass color measurement

Platinum, cobalt and Gardner index -- characterization of liquid yellow degree
