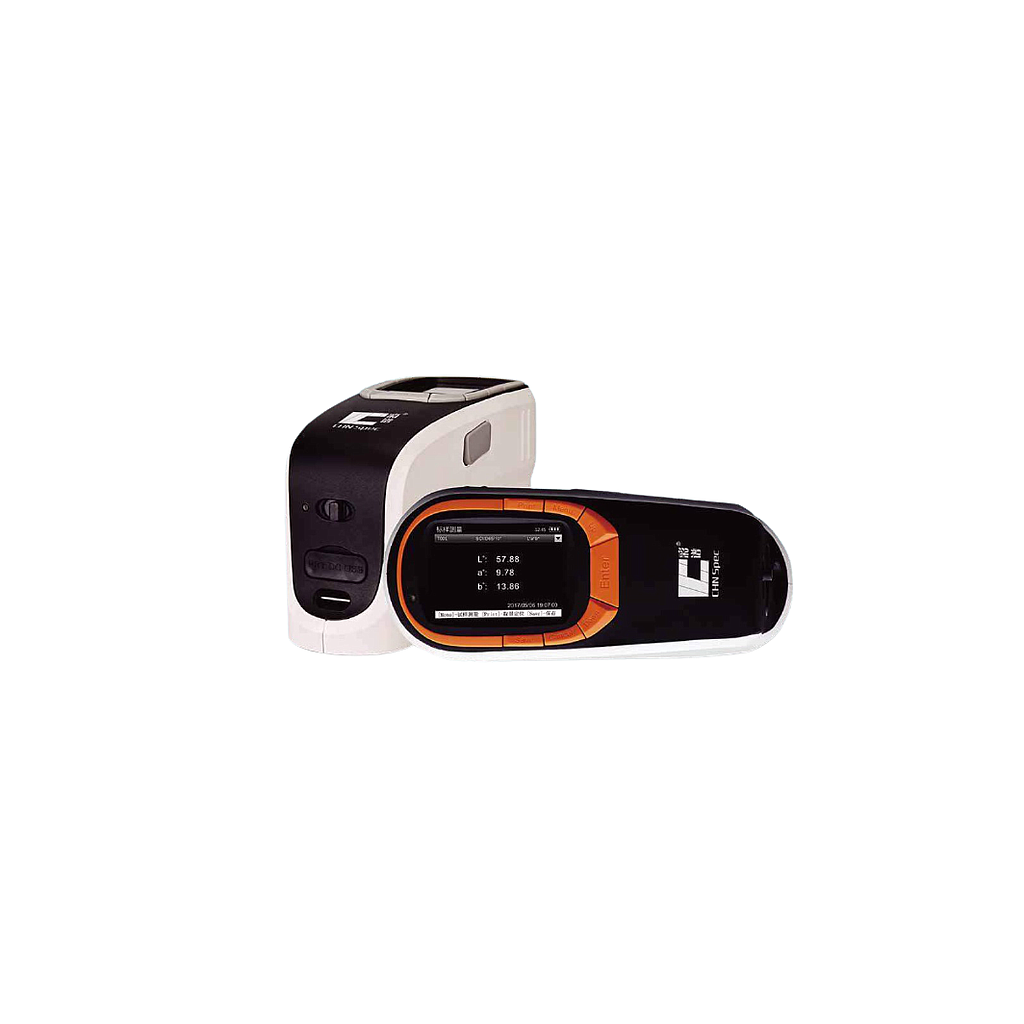

CHN SPEC CS-600 Spectrophotometer

Illumination: d/8(Diffused lighting, 8 degrees observe angle)、SCI(specular reflection included)/SCE(specular reflection excluded)simultaneous measurement。(conform to CIE No.15、ISO 7724/1、ASTM E1164、DIN 5033 Teil7、 JIS Z8722 Condition c standards)

Size of integrating sphere: Φ40mm,Avian diffused reflection surface coating

Illumination Light source: CLEDs(entire wavelength balanced LED light source)

Sensor: dual light path sensor array

Wavelength range: 400-700nm

Wavelength interval: 10nm

Half spectral width: 5nm

Reflectivity range: 0-200%

Reflectivity resolution: 0.01%

Observation angle: 2°/10°

Measurement light source: A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF

Data being displayed: SPD distribution/data，sample's color values，color difference values/graph，pass/fail results，color error tendency，color simulation，display measurement area，history data color simulation，manual input standard sample，generate measurement report

Measurement time interval: 0.5 seconds

Measurement time: 1 second

Color space: CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance Hunterlab,Munsell MI,CMYK,RGB,HSB

Color difference formular: ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*94,ΔE*00

ΔEab(Hunter),555 shade sort

Other colorimetric indices: WI(ASTM E313-10,ASTM E313-73,CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby)； YI(ASTM D1925，ASTM E313-00,ASTM E313-73)；Tint(ASTM E313,CIE,Ganz) Metamerism index Milm, Stick color fastness, Color fastness ISO luminance, 8 gloss, A density, T density, M density, E density

Repeatability:

light splitting reflectivity：standard deviation within 0.08%

color values;ΔE*ab<=0.03(After calibration, standard deviation of 30 measurements on test white board, 5 second intervals),

Maximum：0.05

Battery capacity: rechargeable, 10000 continuous tests, 7.4V/6000mAh

Interface: USB

Data storage: 20000 test results

Light source longevity: 5 years, 1.5 million tests

Inter-instrument agreement: ΔE*ab within 0.2(BCRA color charts II, average of the 12 charts)

Size: 181*73*112mm(L*W*H)

Weight: about 550g(does not include battery's weight)

Display: True color screen that includes all colors

Work temperature range: 0~45℃, relative humidity 80% or below( at 35°C ),no condensation

Storage temperature range: -25℃ to 55℃,relative humidity 80% or below(at 35°C ),no condensation

Color matching system: match

UV light source: without UV light source

Standard accessories: DC adapter, Lithium battery, manual, color management software, drive software, electronic manual, color management guide, USB cable, black/white calibration tube, protective cover, spire lamella, portable bag, electronic color charts, measurement and test report

Optional accessories: powder molding device, micro printer
