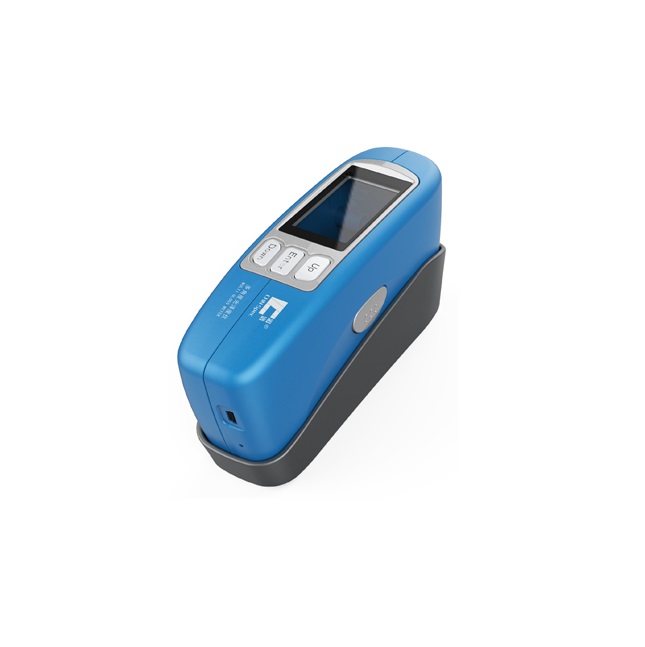

CHN SPEC CS-380 Gloss Meter (20,60,85 Degree)

Test Angle: 20°,60°,85°

Test light spot(mm):

20°:10*10

60°:9*15

85°:5*38

Test range:

20°:0-2000GU

60°:0-1000GU

85°:0-160GU

Resolution: 0.1GU

Test modes: Simple mode, standard mode and sample testing mode

Repeatability:

0-100GU:0.2GU

100-2000GU:0.2%GU

Accuracy: Conform to JJG 696 standard for first class gloss meter

Test time: Less than 1s

Data storage: 100 standard samples; 10000 test samples

Size(mm): 165*51*77 (L*W*H)

Weight: About 400g

Language: Chinese and English

Battery capacity: 3000mAh lithium battery

Port: USB, Bluetooth (optional)

Upper-PC Software: Include

Working Temperature: 0-40℃

Working Humidity: <85%, no condensation

Accessories: 5V/2A charger, USB cable, operating manual, software CD, calibration boards, metrology accreditation certification
