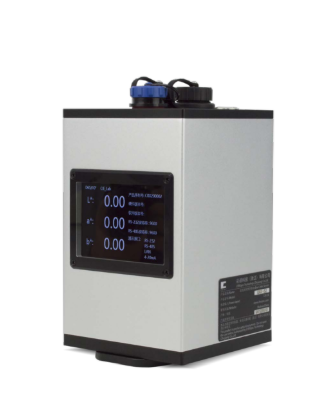

CHN SPEC CRX-66 Non-contact Spectrophotometer/on-line Color Sensor

Geometry* 45/0

Repeatability** dE*ab≤0.02

Inter-instrument agreement***: dE*ab≤0.25

Display accuracy: 0.01

Aperture Size: Φ21mm

Measurement index: spectral reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE-Luv, XYZ , Yxy,RGB, chromatic aberration (Δ E*ab,ΔE*cmc,ΔE*94,ΔE*00), whiteness (ASTM E313 00,ASTM E313-73,CIE ISO2470/R457, AATCC,Hunter,Taube Berger Stensby),yellowness(ASTM D1925,ASTM E313-00,ASTM E313-73),blackening(My,dM), color fastness,color fastness,Tint(ASTM E313-00),color density CMYK(A,T,E,M)

Light source condition: A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID 50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED BH1,LED-RGB1,LED-V1, LED-V2

Lighting source: Full band balanced LED light source

Field angle: 2°，10°

Spectroscopic method: Raster

Sensor: Dual-row high-precision CMOS array sensor

Wavelength interval: 10nm

Wavelength coverage: 400-700nm

Reflectance measurement range: 0-200%

Reflectance resolution: 0.01%

Measurement and observation mode: Visual

Accuracy guarantee: Ensure the first level of measurement

Measuring time: Single measurement 50ms

Measuring interval: 1s

Port: USB，485，232，External trigger, analog output, Ethernet

Screen: Full color screen, 3.5 inches

Light source lifetime: 1 million times in 10 years

Language: Simplified Chinese, English

Non-contact distance: 5mm
