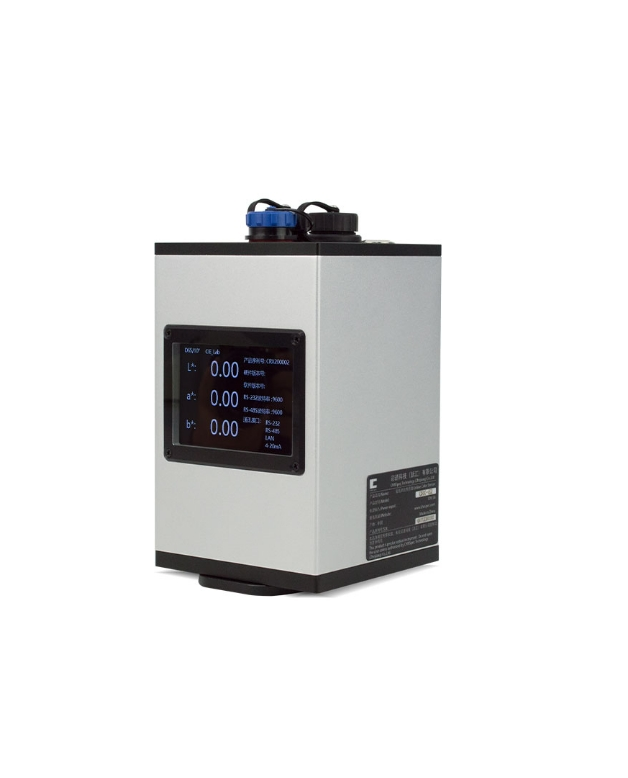

CHN SPEC CRX-62 Online Color Sensor/Non-contact Spectrophotometer (45/0, dE*ab≤0.05)

Measurement structure: 45/0

Measurement repeatability: dEab≤0.05

Display accuracy: 0.01

Measuring aperture: Φ8mm/Φ21mm

Measurement index: Spectral reflectance, ΔE, Lab, CIE-LCh, HunterLab, CIE-Luv, XYZ, Yxy, RGB, color difference (ΔE*ab, ΔE*cmc, Δ*E94, ΔE*00), whiteness (ASTM E313-00, ASTM E313-73, CIE, ISO2470 / R457 AATCC, Hunter, Taube Berger Stensby), yellowness (ASTM D1925, ASTM E313-00, ASTM E313-73), Blackness (My, dM), color fastness, color change fastness, Tint (ASTM E313-00), color density CMYK (A, T, E, M)

Light source condition: A, B, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CWF, U30, U35, DLF, NBF, TL83, TL84, ID50, ID65, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2100%

Lighting source: Full band balanced LED light source

Field Angle: 2°, 10°

Meet the standard: CIE No15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7

Spectroscopic method: Grating

Inductor: Dual-row high-precision CMOS array sensor

Wavelength interval: 10nm

Wavelength range: 400–700nm

Reflectance measurement range: 0–200%

Reflectance resolution: 0.01%

Measurement and observation mode: Visual

Calibrate: Intelligent automatic calibration

Accuracy guarantee: Ensure the first level of measurement

Measuring time: Single measurement 50ms

Measuring interval: 1s

Port: USB, 485, 232, external trigger, analog output, Ethernet

Screen: Full color screen, 3.5 inches

Light source lifetime: 1 million times in 10 years

Language: Simplified Chinese, English

Non-contact distance: 5mm
