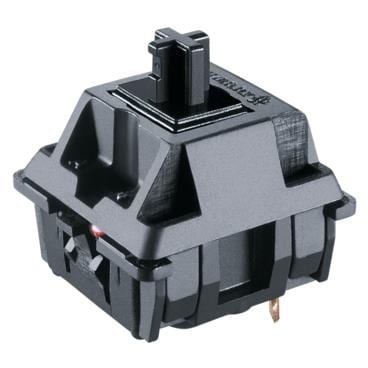

CHERRY MX1A-11DN Standard Switches Black Stem, Full Travel Mechanical KeyswitchLinear Feel, 60cNWith Diode, No LEDFrame Mount (no fixation pins)
ManufacturerCHERRY(View more products from this manufacturer)
ModelMX1A-11DN
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Life: 50000000 Cycle
Width: 15.6 mm
Height: 15.2 mm
Length: 15.6 mm
Actuator: Without Cap
IP Rating: IP40
Illuminated: Non-Illuminated
Unit Weight: 1.600 g
Contact Form: SPST
Current Rating: 10 mA
Mounting Style: PCB Mount
Actuator Length: 3.6 mm
Contact Plating: Gold
Switch Function: OFF - (ON)
Housing Material: Thermoplastic (TP)
Termination Style: PC Pin
Voltage Rating AC: 12 VAC
Voltage Rating DC: 12 VDC
Flammability Rating: UL 94 HB
Maximum Operating Temperature: + 70 C
Minimum Operating Temperature: - 10 C
