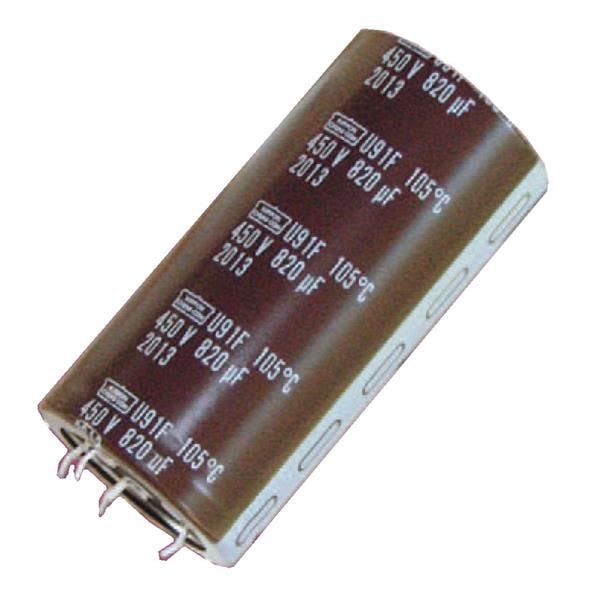

Chemi-Con E91F3J1VND102MA80T High Ripple Snap Mount Capacitor 385V 1000uF 20% Long Life
ManufacturerChemi-Con(View more products from this manufacturer)
ModelE91F3J1VND102MA80T
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
ESR: 95 mOhms
Life: 5000 Hour
Length: 80 mm
Diameter: 35 mm
Tolerance: 20 %
Capacitance: 1000 uF
Number of Pins: 4 Pin
Ripple Current: 4 A
Termination Style: Snap In
Voltage Rating DC: 385 VDC
Dissipation Factor DF: 0.15
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 25 C
