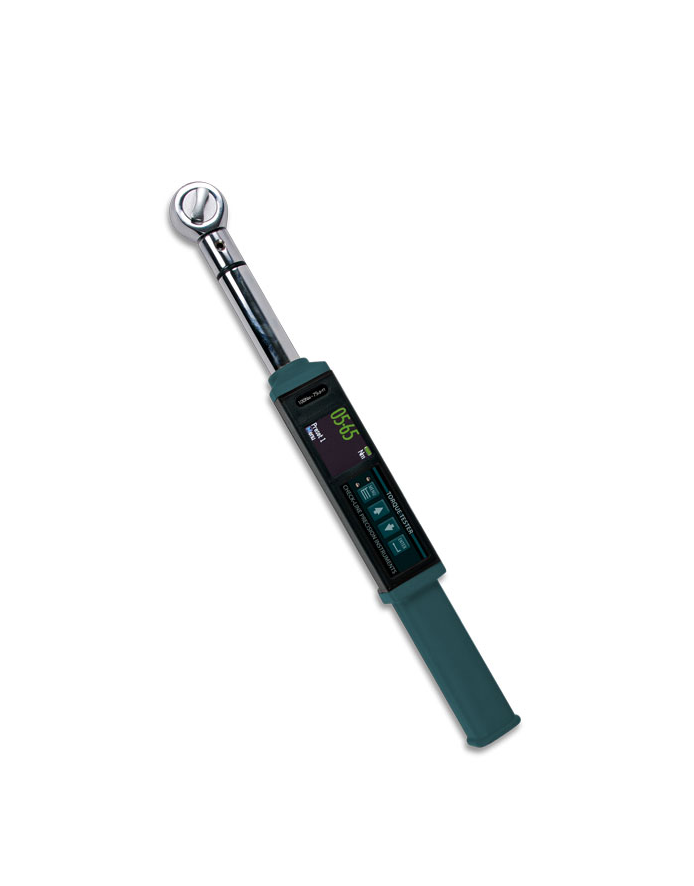

Checkline ETW-SP-200 Digital Torque Wrench (15 - 150 lbf-ft, 1/2", 14x18)

Range: 15 - 150 lbf-ft

Drive Size: 1/2", 14x18

Accuracy:

±1% (Of indicated)

10 - 100% of capacity (readings start at 5%)

Sampling Frequency: 500 Hz (500 samples/sec)

Display Update Rate: 4 Hz (4 times/sec)

Memory: 6000 readings

Operation Mode: Peak hold/ Track /Preset

Unit Selection: Lb-in, Lb-ft, N-m, N-cm, Kgf-m, Kgf-cm, Oz-in

Length:

10-100 Nm: 0.4m / 15.75in

200-340 Nm: 0.63m / 24.8in

600-800 Nm: 1.25m / 49.2in

1000 Nm: 1.35m / 53.25in

1500-2000 Nm: 1.65m / 65in

Head Type: Robust Bi-Directional Ratchet

Battery: 4x AA

Battery Life: 120 Hours

Operating Temperature: -10°C ~ 60°C

Storage Temperature: -20°C ~ 70°C

Humidity: Up to 90% non-condensing
