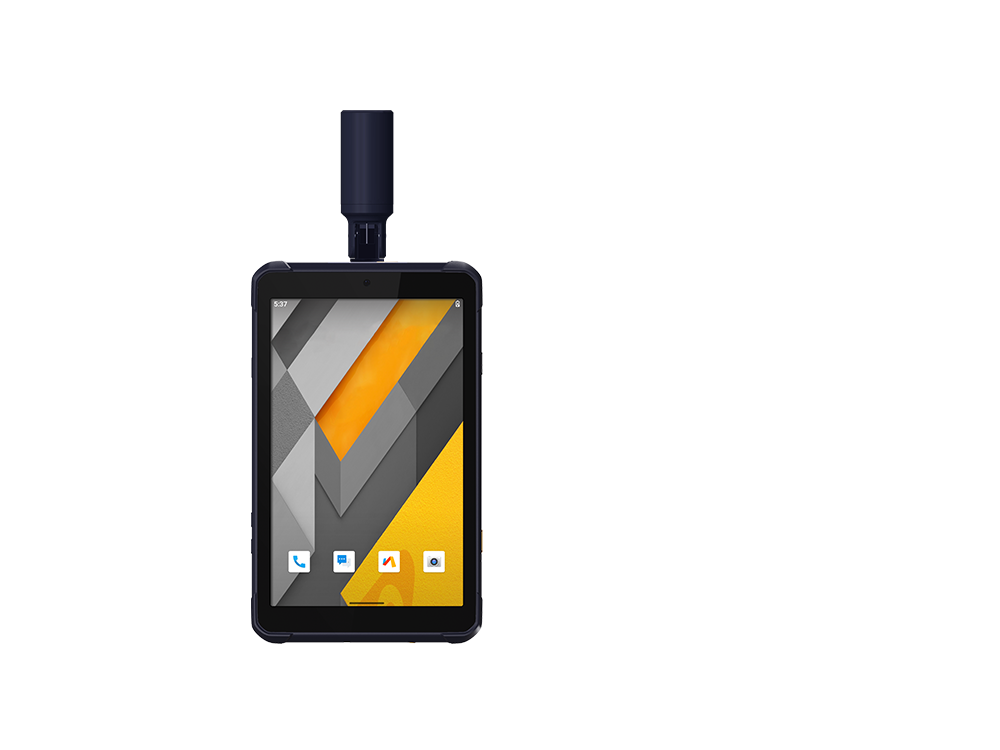

CHCNAV LT800H Gnss RTK Rugged Tablet (1408CH, Android 12.0, ROM: 128GB)

System:

Operating system: Android 12.0 GMS certified

CPU: Advanced octa-core CPU 2.0 GHz

RAM: 6 GB

ROM: 128 GB

Extension: Micro SD card, up to 256 GB

GNSS Accuracies

Channel: 1408

Constellation:

BDS: B1I, B2I, B3I, B1C, B2a, B2b

GPS: L1C/A, L1C, L2P (Y), L2C, L5

GLONASS: L1, L2

Galileo: E1, E5a, E5b, E6*

QZSS: L1, L2, L5, L6*

SBAS*: L1, L5

RTK: 2 cm HRMS

SBAS: < 1 m HRMS

Display

Size: 8.1” touch screen

Resolution: 1920 x 1200

Brightness: 600 cd/m2

Touch screen: Capacitive multi-touch, 5 points

Screen technology: IPS display panel; Corning® Gorilla®; Glass 3

Cameras

Front: 8 MP

Rear: 16 MP

Flash light: Integrated

Physical

Dust and water proof: IP67 (according to IEC 60529) for water and dust resistance, protected against temporary immersion at a depth of up to 1 m.

Shock: 1.2 m fall onto concrete

Humidity: 5% - 95% RH (without condensation)

Size (L x W x H): 215.5 mm x 130 mm x 14.5 mm (8.5 in x 5.1 in x 0.6 in)

Weight: 570 g (20.1 oz)

Environment: Operating: -20°C to +60°C; Storage: -40°C to +70°C

Battery

Li-ion battery capacity: Built-in non-removable battery 9,000 mAh

Voltage: 3.8 V

Battery life: 8 h

Charging time: 4.0 h Fast charging: QC 3.0

Internal sensors: NFC; G-Sensor; Light Sensor; E-Compass; Gyroscope

Accessories:

- Screen protector

- Packaging box

- Touch pen

- Type-C USB cable

- Helix antenna

- Charger
