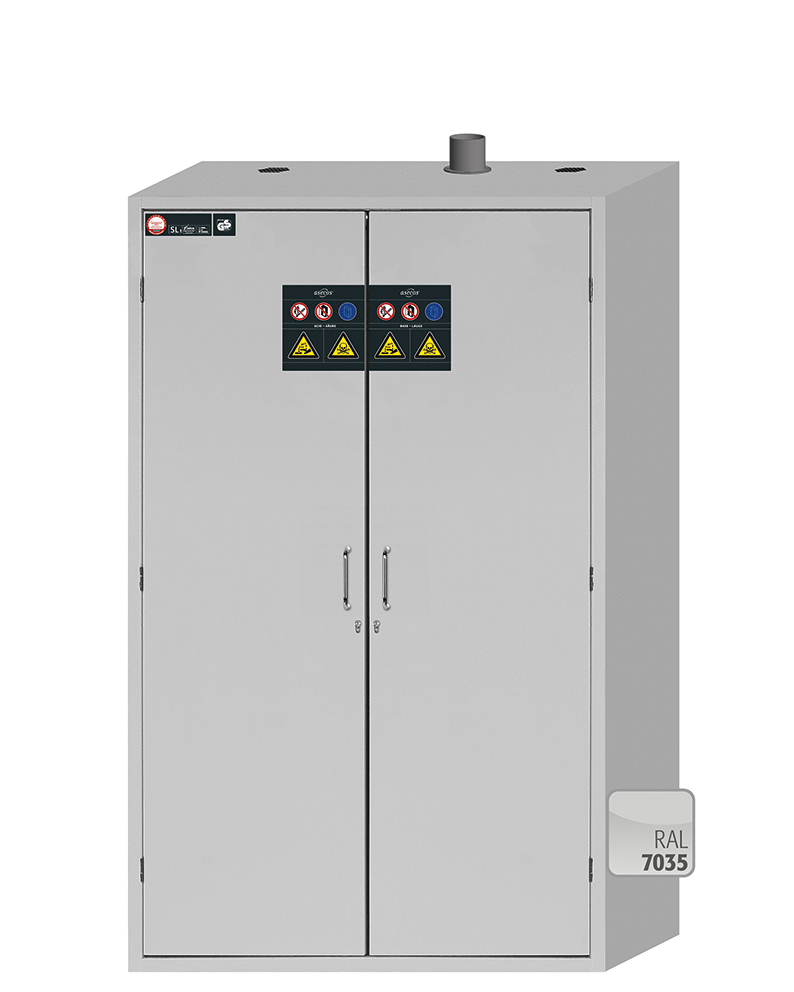

CHC lab SL.196.120.MV Acid/Alkalinity Safety Cabinet (33L)

External

Exterior Dimension (W×D×H, mm): 1197×603×1965

Interior Dimension (W×D×H, mm) Top : 485×570×1869

Depth of the Opened Door (mm): 1153

Weight (kg): 160

Shelf

Quanity (EA): 3

Maximum Load (kg): 75 / per piece

Spill Tray

Quanity (EA): 1

Load Capacity (ℓ): 33

Duct Exhaust Connection

The exhaust vent located at the top of the product effectively discharges odors and harmful gases and automatically closes the exhaust vent in the event of a fire to block the outflow of harmful gases to the outside.

Automaticlly Closed Door

A low melting point lead sigeon unit automatically closes the door to prevent secondary damage if a fire occurs and the temperature rises above a certain temperature.

Expandable Interior Material

The expandable interior finish between the door and the frame swells in response to heat in the event of a fire, sealing the gap between the door and the frame and blocking the entry of heat into the cabinet. It keeps the temperature inside constant.

Fire resistant filler double replenishment structure

A double supplement with a fireproof filler between the outer wall and the inner wall blocks the inflow of heat and keeps the temperature of the interior space constant
