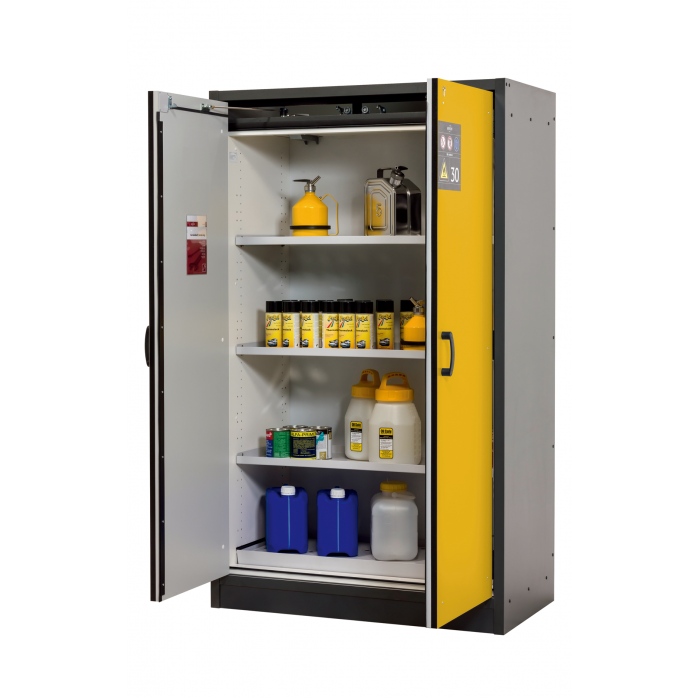

CHC lab Q30.195.116 Flammable Safety Cabinet Type 30 (2 doors, 33L)

Exterior: 2 doors

+External Specification (WxDxH, mm): 1164 x 620 x 1947

+Internal Specification (WxDxH, mm): 1050 x 519 x 1626

+Depth of an open door(mm) : 1153

+ Weight(kg): 240

Shelf:

+Quantity(EA) : 3

+Maximum Load(kg): 75/per

Spill Tray:

+Quantity(EA) : 1

+Load Capacity(ℓ) : 33

Pass Fire Test (30 minutes)

By obtaining a fire-resistance rating of 30 minutes, the fire truck's dispatch time and fire suppression time can be guaranteed for 90 minutes in the event of a fire.

Duct Exhaust Connection

The exhaust vent located at the top of the product effectively discharges odors and harmful gases and automatically closes the exhaust vent in the event of a fire to block the outflow of harmful gases to the outside.

Automaticlly Closed Door

A low melting point lead sigeon unit automatically closes the door to prevent secondary damage if a fire occurs and the temperature rises above a certain temperature.

Height Adjustable Shelf

A height adjustment hole of 32mm is machined to adjust the height of the shelf, which allows fine height adjustment of the shelf and supports a load of up to 75kg.

Expandable Interior Material

The expandable interior finish between the door and the frame swells in response to heat in the event of a fire, sealing the gap between the door and the frame and blocking the entry of heat into the cabinet. It keeps the temperature inside constant.

Large storage capacity

The large-capacity storage cabinet offers three basic shelves and can store about 95 liters of water for three double-door type shelves and 190 liters for six drawers. (3 base shelves and 1 base spill tray provided)

Fire resistant filler double replenishment structure

A double supplement with a fireproof filler between the outer wall and the inner wall blocks the inflow of heat and keeps the temperature of the interior space constant
