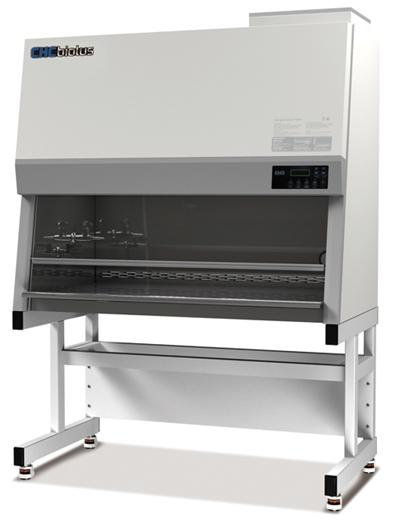

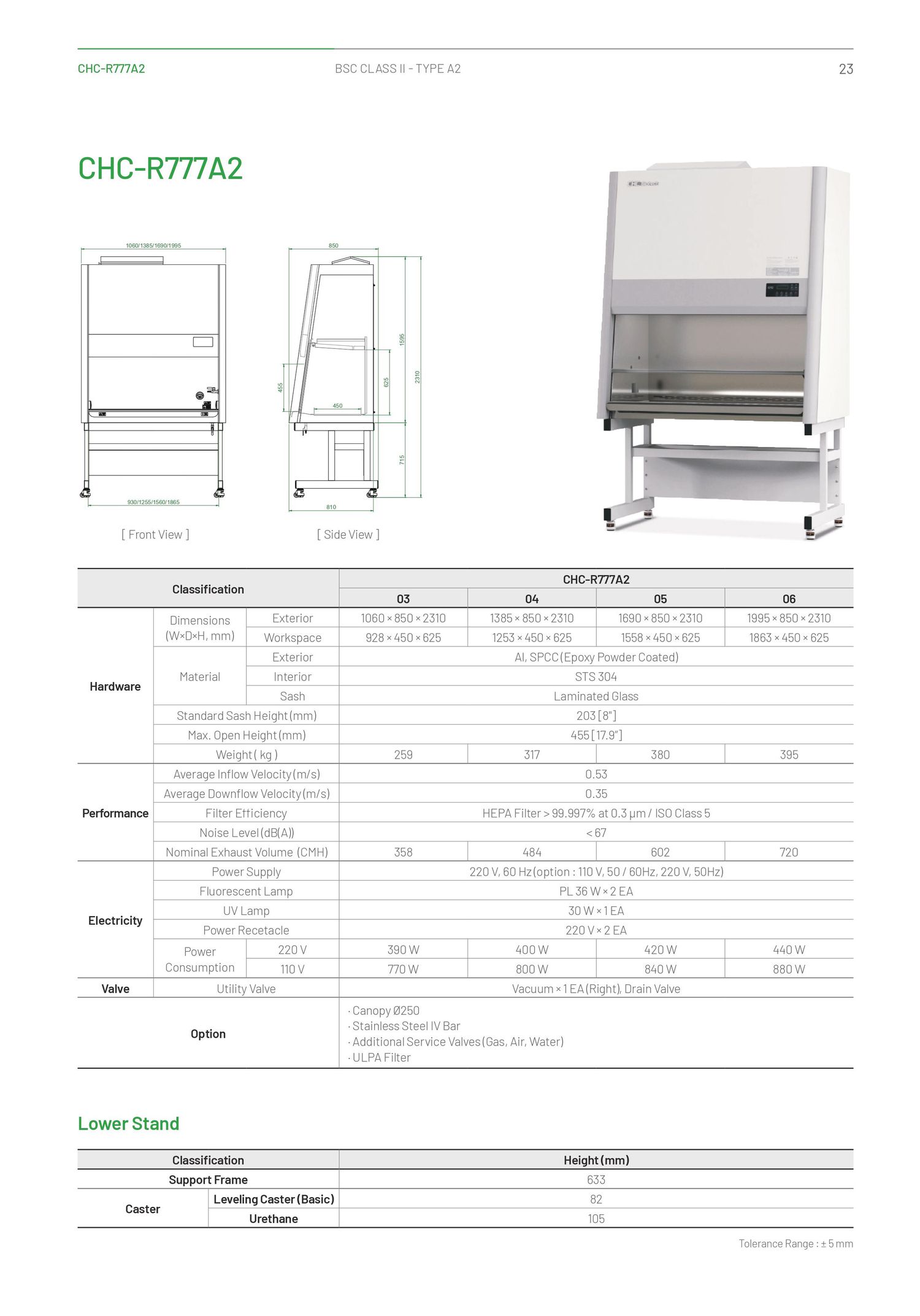

CHC Biotech CHC-R777A2-04 Biological Safety Cabinet Class Ⅱ (1385 x 850 x 2310mm)

Hardware:

- Dimensions (W×D×H, mm):

+ External : 1385 x 850 x 2310

+ Workspace: 1253 x 450 x 625

- Material:

+ External: Al, SPCC (Epoxy Powder Coated)

+ Interior: STS 304

+ Sash: Laminated Glass

+ Standard Sash height (mm): 203 [8"]

+ Max. opening height (mm): 455 [17.9"]

+ Weight (kg): 317

Performance:

- Average inflow velocity (m/s): 0.53

- Average downflow velocity (m/s): 0.35

- Filter efficiency: HEPA Filter > 99.997% at 0.3 μm / ISO Class 5

- Noise (dB(A)) : < 67

- Nominal exhaust volume (CMH): 484

Electricity: 220 V, 60 Hz (option : 110 V, 50 / 60Hz, 220 V, 50Hz)

- Fluorescent lamp: PL 36 W × 2 EA

- UV lamp: 30 W × 1 EA

- Power socket: 220V × 2EA

- Power Consumption: 220V: 400W

Utility valve: Vacuum × 1 EA (right), drain valve

Option:

- Canopy Ø250

- Stainless Steel IV Bar

- Additional Service Valves (Gas, Air, Water)

- ULPA Filter

Lower stand:

- Support frame (Height (mm)): 633

- Caster (Height (mm)):

+ Leveling Caster (Basic): 82

+ Urethane: 105

- Introduction of item:

BSC Class Ⅱ, developed for the first time in Korea by CHC Biotech, is an effective product that protects workers, the environment, and samples. It is essential safety equipment for all laboratories handling microorganisms and pathogens belonging to BL 1-3.
