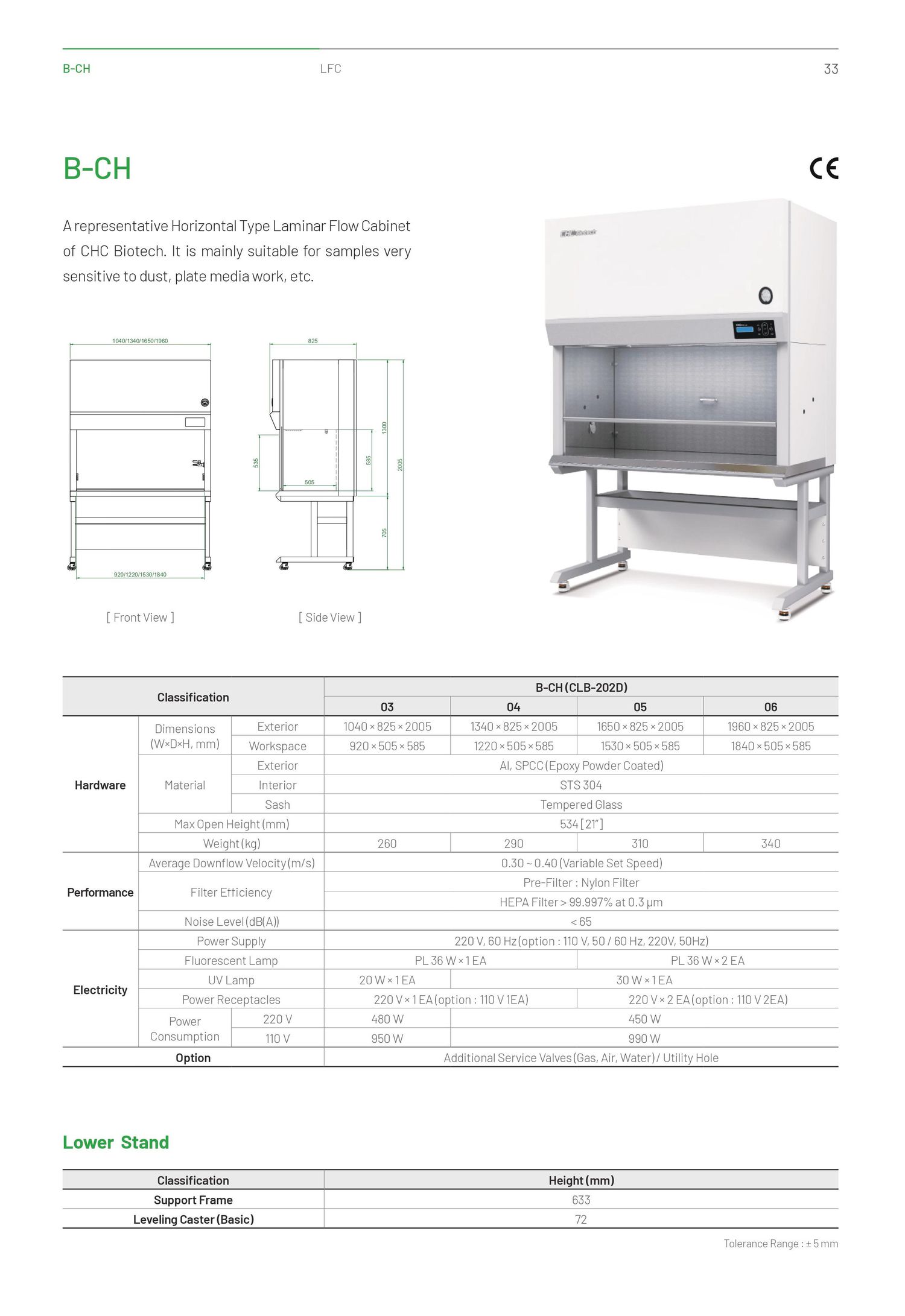

CHC Biotech B-CH-06 Horizontal Type Laminar Flow Cabinet (CHC lab CLB-202D-06)

Hardware:

- Dimensions (W×D×H, mm):

+ Exterior : 1960 x 825 x 2005

+ Workspace: 1840 x 505 x 585

- Material:

+ Exteriorl: AI, SPCC (Epoxy Powder Coated),

+ Interior: STS 304

+ Sash: Tempered Glass

+ Max. opening height (mm): 534 [21"]

+ Weight (kg): 340

Performance:

- Average Downflow Velocity(m/s): 0.30 ~ 0.40 (Variable Set Speed)

- Filter Efficiency:

+ Pre-filter : Nylon Filter

+ HEPA Filter: > 99.997% at 0.3 μm

- Noise Level (dB(A): < 65

Electricity:

- Power Supply: 220 V, 60 Hz (option : 110 V, 50 / 60 Hz, 220V, 50Hz)

- Fluorescent Lamp: PL 36 W × 2 EA

- UV Lamp: 30 W × 1 EA

- Power Receptacles: 220 V × 2 EA (option : 110 V x 2EA)

- Power Consumption: 220V: 450W

Option:

- Additional Service Valves(Gas, Air, Water)

- Utility Hole

Lower stand:

- Support frame (Height (mm)): 633

- Leveling Caster (Basic): 72

Datasheet
