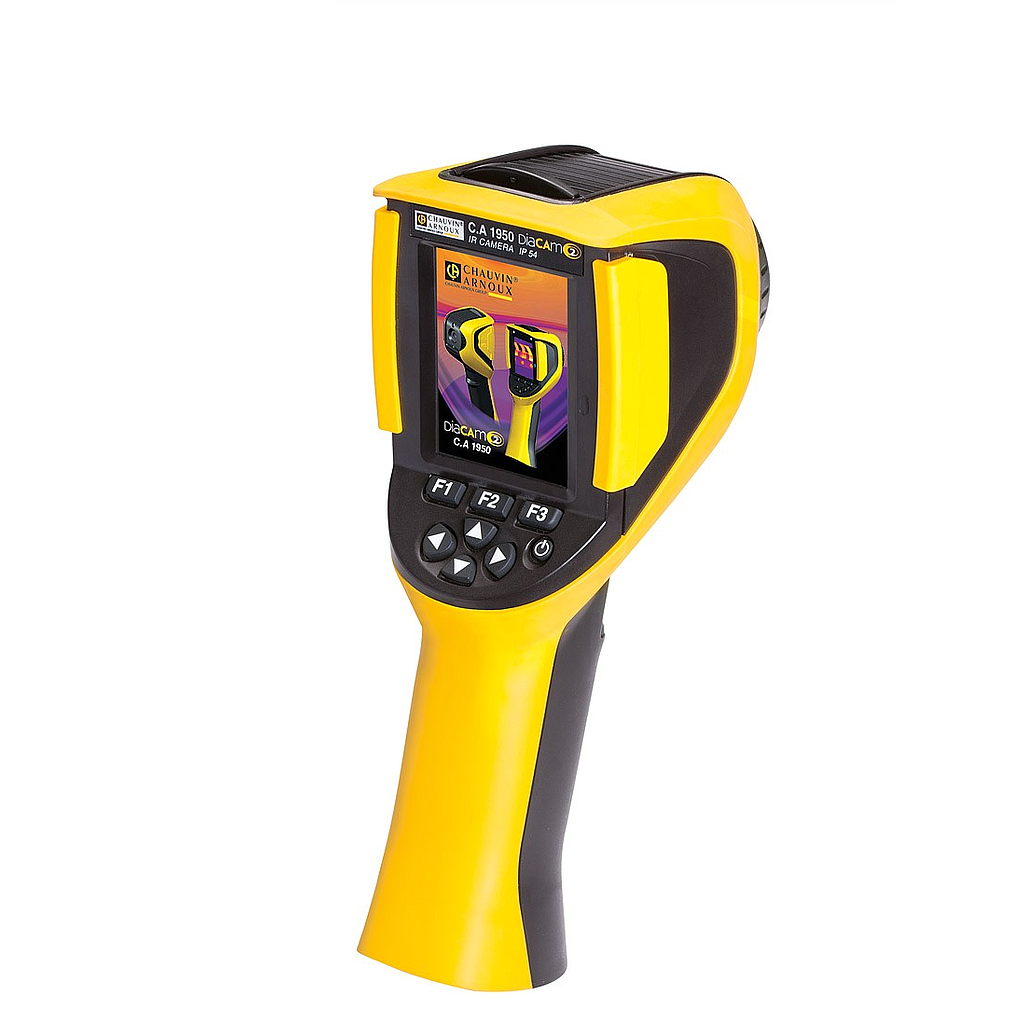

Chauvin Arnoux C.A 1950 Thermal camera (-20 °C -+250 °C)

13-hour battery life
Focus-free with 20° x 20° field of view
Voice annotations to record your comments directly on the image
Connectivity with current clamps and multimeters: all the necessary measurements simultaneously

Specifications
- Detector: 80 x 80
- Type; UFPA microbolometer, 8 ~14 μm
- Frequency: 9 Hz
- Sensitivity (N.E.T.D): 80 mK @ 30 °C (0.08 °C @ 30 °C)
Temperature measurement
- Temperature range: -20 °C to +250 °C
- Accuracy: ±2 °C or ±2 % of reading
Image performance
- Field of view: 20° x 20°
- IFOV (spatial resolution): 4.4 mrad
- Focus: Fixed
- Minimum focal distance: 40 cm
- Real image: Yes (320 x 240 pixels)
- Display mode: Thermal image, real image with automatic parallax compensation. Image merging available PC software
Functions for analysis
- Measurement tools: 1 manual cursor + 1 automatic detection + Min-Max on adjustable area + temperature profile + Isotherm
- Parameter settings: Emissivity, environmental temperature, distance, relative humidity
- Voice comments: Yes by Bluetooth (earphones supplied)
- Connectivity : F407 and F607 clamps, MTX 3292 and MTX 3293 multimeters
- Data storage: On 2 GB removable micro SD card (approx. 4,000 images), up to 32 GB possible
- Image format: .bmp (thermal and real images recorded simultaneously)
Presentation of image
- Adjustment: Automatic or manual adjustment of palette min-max
- Freezing of image: Animated or fixed image
- Image display: Multi-palette
- Screen: 2.8 inches
Power supply
- Type: Rechargeable NiMH batteries with low self-discharge
- Recharging: External (charger supplied)
- Battery life: 13hrs 30 min (typical) / Brightness 50 % Bluetooth off
Environmental specifications
- Operating temperature: -15 °C to +50 °C (-4 °F to +122 °F)
- Storage temperature range: -40 °C to +70 °C (-40 °F to +158 °F)
- Humidity: 10 % to 95 %
- Compliance: EN 61326-1: 2006 / EN 61010-1 Ed. 2
- Fall resistance: 2 metres on all surfaces
- Shock resistance: 25 G
- Vibration resistance: 2 G
Physical specifications
- Weight / dimensions : 700 g with rechargeable batteries / 225 x 125 x 83
- Ingress protection: IP 54
- Interfaces: USB link and Mass Storage function: the product is then recognized as a USB drive for easy transfer of the images
- Bluetooth for connectivity with earphones (voice comments) and Chauvin Arnoux®Metrix® measuring instruments (F407, F607, MTX 3292, MTX 3293): Yes, ¼’’ insert on camera
General specifications
- Supplied as standard with automatic report generation in .pdf or .docx

State at delivery: delivered in hard case with 4 NiMH batteries and battery charger, 1 micro SD HD card, 1 USB cable, 1 set of Bluetooth earphones, CAmReport software on CD ROM, user manuals.
