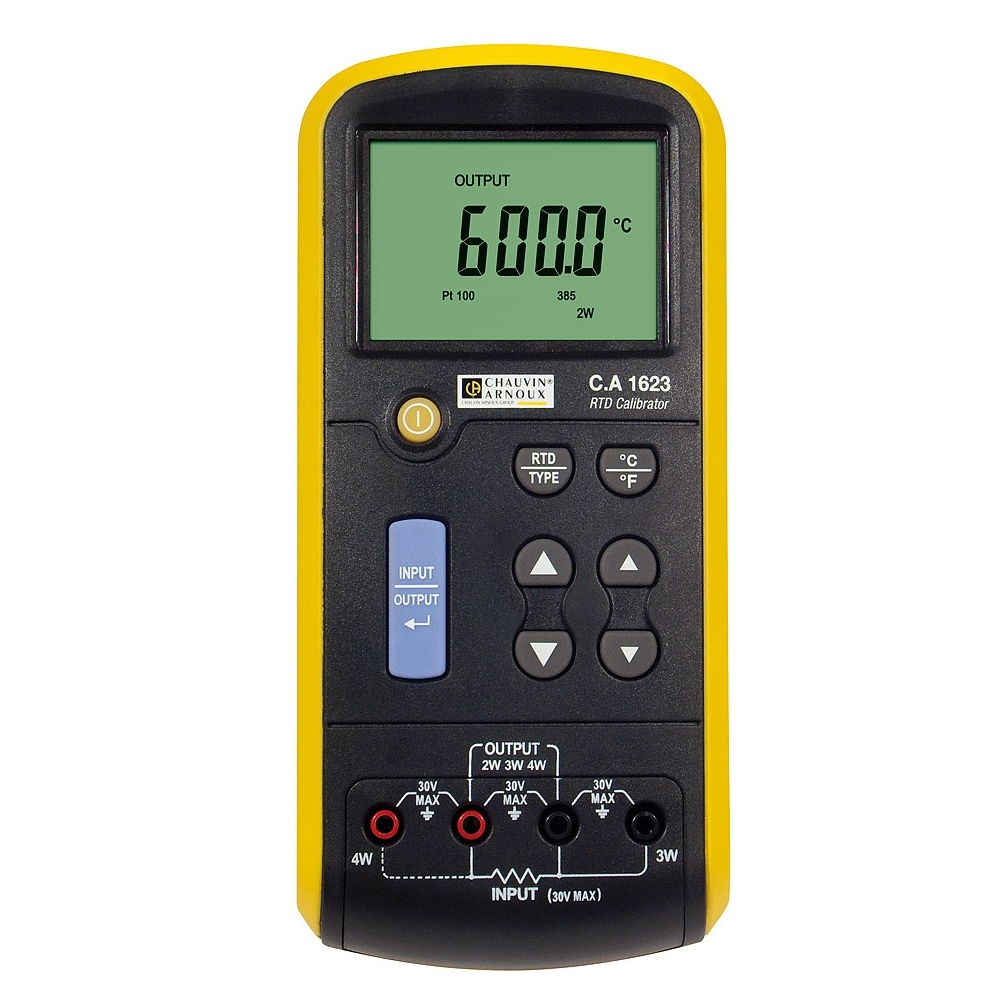

Chauvin Arnoux C.A 1623 Temperature calibrator for resistance temperature-probes (7 loại đầu đo)

- Range: 0.00 Ω - 400.00 Ω; 400.0 Ω - 1,500.0 Ω; 1,500.0 Ω - 3,200.0 Ω
- Accuracy 4-wire input/ 2-wire/3-wire input/ Output: ± 0.1 Ω ; ± 0.5Ω; ±1Ω/±2Ω
- Acceptable excitation in: 0.1 - 0.5 mA/ 0.5mA - 3.0mA ; 0.05mA - 0.8mA; 0.05mA - 0.8mA
- Pt10 385
+ Range: - 200 to + 800 °C
+ Acceptable excitation in 0.1 - 3.0 mA
- Pt50 385
+ Range: - 200 to + 800 °C
+ Accuracy 4-wire input/ 2-wire/3-wire input/ Output: 0.7°C / 1.0°C / 0.7°C
+ Acceptable excitation in 0.1 - 3.0 mA
- Pt100 385
+ Range: - 200 to + 800 °C
+ Accuracy 4-wire input/ 2-wire/3-wire input/ Output: 0.33°C / 0.5°C / 0.33 °C
+ Acceptable excitation in 0.1 - 3.0 mA
- Pt200 385
+ Range: 200 to + 250 °C / +250 to + 630 °C
+ Accuracy 4-wire input/ 2-wire/3-wire input/ Output: 0.2 °C/ 0.3°C / 0.2°C ; 0.8 °C/ 1.6 °C/ 0.8 °C
+ Acceptable excitation in 0.1 - 3.0 mA
- Pt500 385
+ Range: 200 to + 500 °C / +500 to + 630 °C
+ Accuracy 4-wire input/ 2-wire/3-wire input/ Output: 0.3°C / 0.4°C / 0.6°C ; 0.9°C / 0.3°C / 0.4 °C
+ Acceptable excitation in 0.05 - 3.0 mA
- Pt1000 385
+ Range: - 200 to + 100 °C / +100 to + 630 °C
+ Accuracy 4-wire input/ 2-wire/3-wire input/ Output: 0.2°C / 0.2°C / 0.4°C; 0.5°C / 0.2 °C/ 0.2 °C
+ Acceptable excitation in 0.1 - 3.0 mA
- Pt100 JIS
+ Range: + 200 to + 630 °C
+ Accuracy 4-wire input/ 2-wire/3-wire input/ Output: 0.2°C / 0.5 °C/ 0.3 °C
+ Acceptable excitation in 0.1 - 3.0 mA
- General specification
+ Power supply : 6 x 1.5 V
+ Dimension : 205 x 97 x 45 mm/ 472 g
+ Mains power supply: Input: 100 V – 240 VAC, 50–60 Hz 1.8 A ; Output: 12 VDC, 2 A MAX

Delivered with 2 pairs of test wires and crocodile clip, 6 AAA 1.5 V batteries, 1 operating manual in 5 languages and 1 carrying bag
Accessory: Mains power supply P01103057
