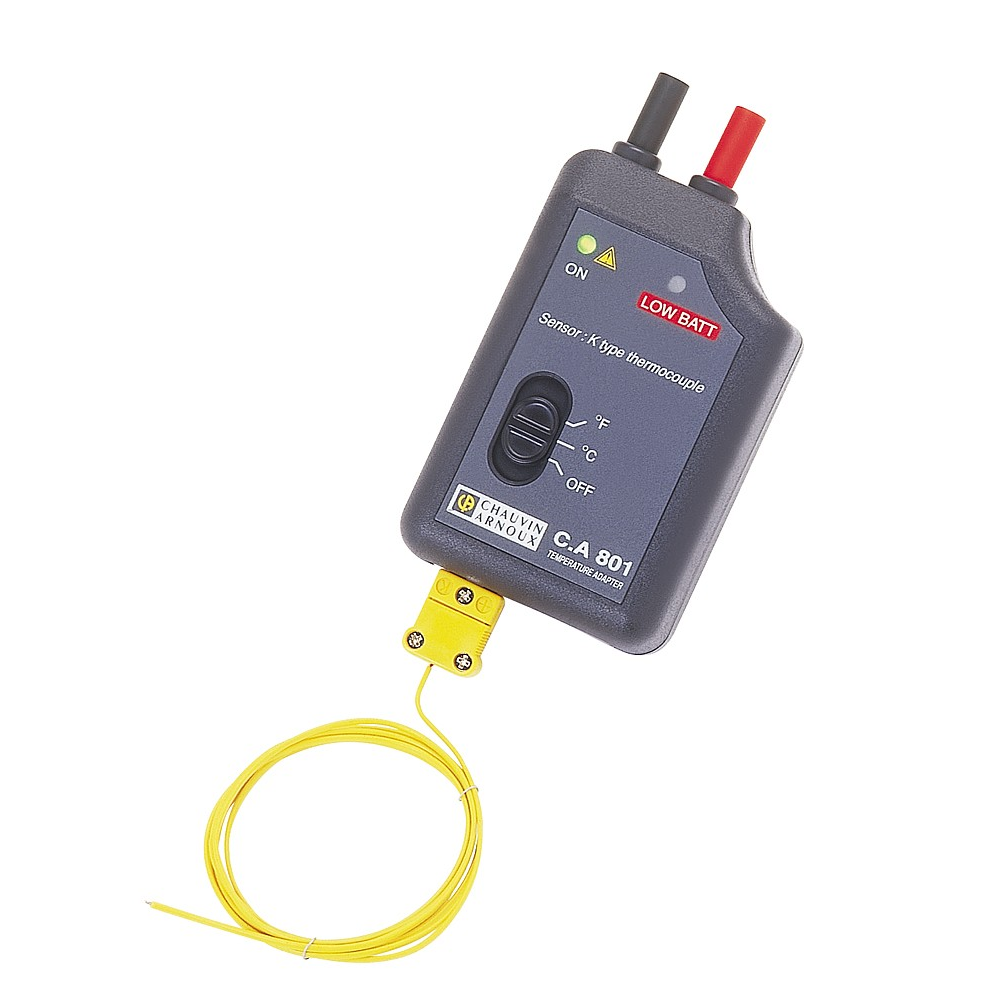

Chauvin Arnoux C.A 801 Adapter for multimeter and clamp

- Measurement ranges: -40 to +1000°C / -40 to +1800°F
- Sensitivity: 1 mV DC / °C (or /°F)
- Typical accuracy: < 1%
- Temperature of use: 0 to 50°C
- Power supply: 9 V battery
- Battery charge life: 300 h
- Minimum impedance of associated measuring instrument: 2 M?
- Ø 4 mm safety terminals with standard 19 mm centre distance
- IEC 1010-1 -24 V - Cat II-2
- Dimensions / Weight: 120 x 64 x 35 mm / 200 g

Delivered in a blister pack with a 9 V alkaline battery, K-thermocouple wire sensor and user's manual.
Accessories- interchangeable K-thermocouple sensors
- SK11 (Ø3 mm x130 mm) P03.6529.17
- SK13 (Ø3 mm x 300 mm) P03.6529.18
- SK14 (Ø6 mm x 130 mm) P03.6529.19
- SK15 (Ø8 mm x 130 mm) P03.6529.20
- SK17 (Ø6 mm x 130 mm) P03.6529.21
- SK19 (Ø14 mm x 112 mm) P03.6529.22

Datasheet
