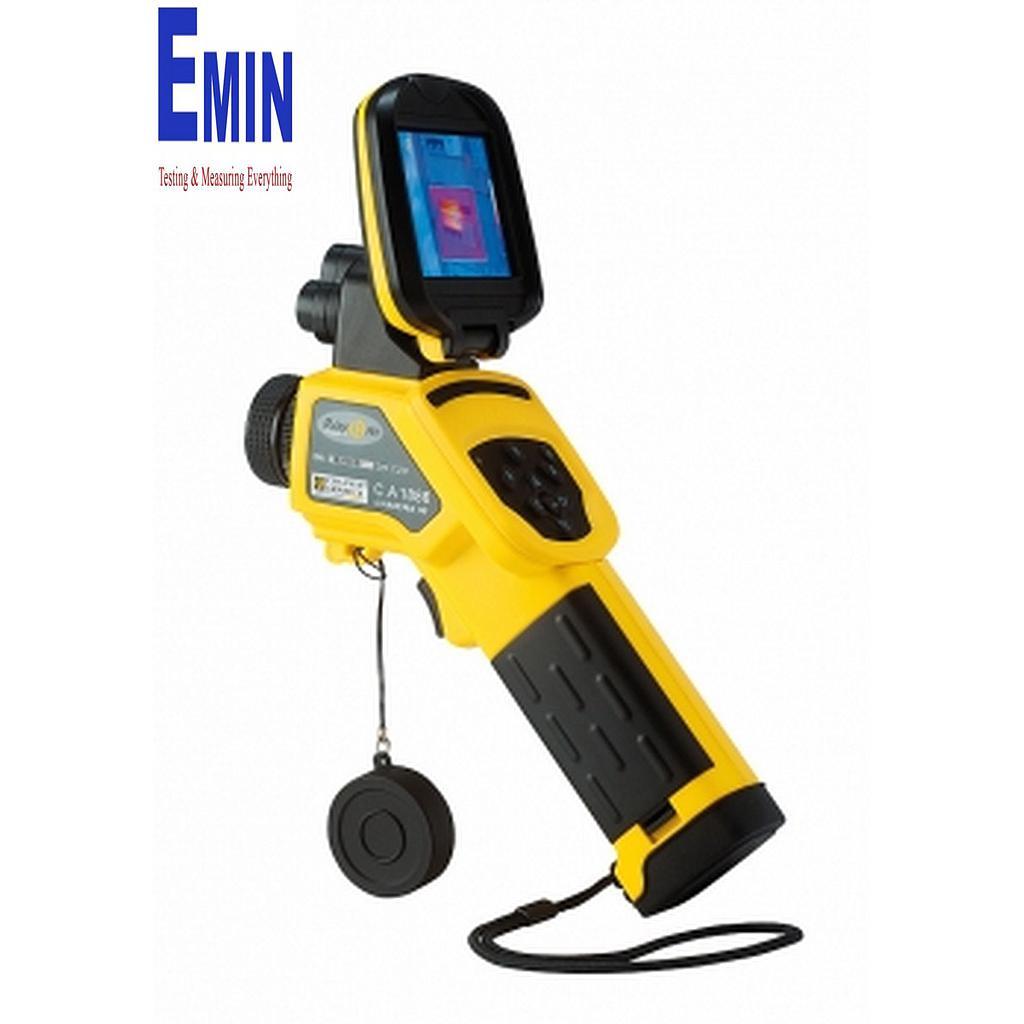

Chauvin Arnoux C.A 1886 High-Resolution Thermal Camera (600°C)

Manuafacturer: Chauvin Arnoux
Model : C.A 1886
Item: P01651260
Warranty : 12 month

Detector specifications
- Detector: 160 x 120
- Type: UFPA microbolometer, 8-14 μm
- Frequency: 50 Hz*
- Sensitivity (N.E.T.D): 0.08 °C tại 30 °C
Temperature measurement
- Temperature range: -20 °C to +600 °C
- Accuracy: ±(2 °C or 2 %)
Image performance
- IR image: Ye s
- Field of view: 20° x 15°
- Spatial resolution: 2.2 mrad
- Min. focal distance: 10 cm
- Focusing: Manual
- Real image: Yes
- Min. focusing distance: 10 cm
- IR-Merge: Complete IR-Merge functions IR image in real image from 0 to 100 %
- Image size: 640 x 480 pixels
Functions
- Emissivity correction: Yes
- Parameter settings: Emissivity, environmental temperature, distance, relative humidity
- Measurement tools: 4 cursors: 3 manual cursors + 1 auto. Max/Min detection on adjustable area, isotherm, high/low alarm.
- Comments: Voice annotations (option)
- Storage: 1,000 (radiometric format) + 250 folders
- Storage type: 2 GB SD Card
- Screen: 3.5 inches, multidirectional
General specifications
- Battery: Battery life: 3 hours
- Battery recharging : Recharging via external charger
- Protection: IP54

State of delivery: a case with 1 battery charger, 2 batteries, a 2 GB SD Card, 1 SD card reader, 1 video cable, RayCAm Report Standard software and a measurement report
Accessories
- Sun-shade P01651531
- Photo tripod adapter P01651526
- Lens cap P01651522
- Battery P01296041
- Battery charger P01296043
- Mains power supply P01651527
- In-vehicle battery charger (cigarette lighter) HX006

Datasheet
