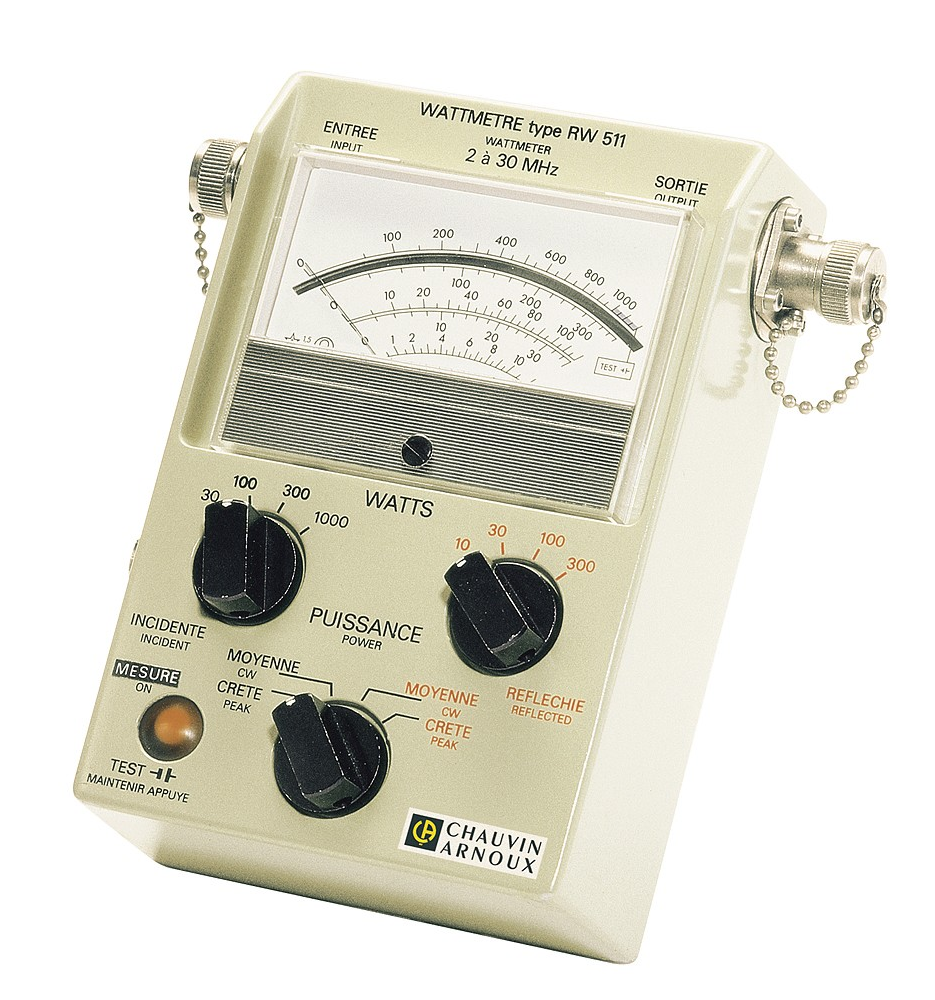

Chauvin Arnoux RW511 Directional microwave wattmeter

- Frequency: 2 to 30 MHz
- Power:
+Incident: 30 W to 1000 W
+Reflected: 10 W to 300 W
- Accuracy: ± 7.5 % for average power; ±10 % for peak power
- Use: Truyền sideband đơn(SSB)
- Impedance: 50 Ω
- Insertion loss: < 0.1 dB
- Residual S.W.R.:≤1.15
- Input and output connectors: N female
- Power supply:2 x 1.5 V batteries ; one 9 V battery for the RW 511
- Operating temperature:0 to +50°C
- Weight: approximately 1.4 kg
- Dimensions (l x h x d) : 180 x 120 x 60 mm

Datasheet
