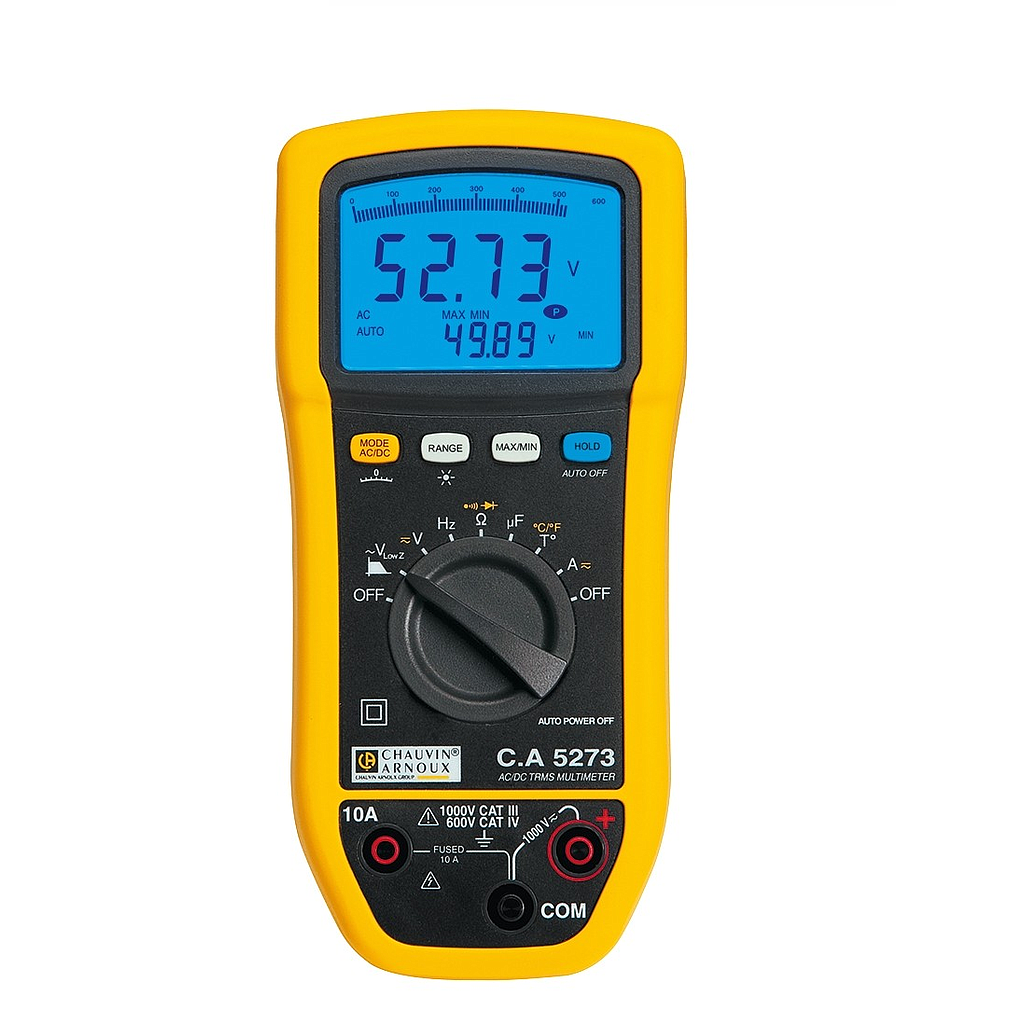

Chauvin Arnoux C.A 5273 DC digital multimeter (0.2%; True RMS; temperature)

Specifications
- Display: 2 x 6,000 counts with backlighting
- Bargraph: 61 + 2 elements, dual mode (full scale/central zero)
- Acquisition: TRMS AC /DC
- Measurement range: 5 measurements / second
- Autorange / Deactivatable : Yes / yes
- Automatic AC /DC detection: Yes
- Vdc:
+ Ranges: 600 mV / 6V / 60V / 600 V / 1,000 V
+ Typical accuracy: 0.2% + 2 cts
+ Resolution: 0.1 mV to 1 V
- Vac:
+ Ranges: 600 mV / 6 V / 60 V / 600 V / 1,s000 V
+ Resolution: 0.1 mV to 1 V
+ Bandwidth: 40 Hz to 3 kHz
- VLowAC (low impedance + low-pass filter)
+ Ranges: 600 mV / 6V / 60V / 600V / 1,000 V
+ Resolution: 0.1 mV to 1 V
- Adc
+ Ranges: 6 A / 10 A
+ Resolution: 0.001 A to 0.01 A
- Resistance:
+ Ranges: 600 Ω/ 6,000 Ω/ 60 kΩ/ 600 kΩ/ 6 MΩ/ 60 MΩ
+ Resolution: 0.1 Ωto 0.1 MΩ
- Audible continuity: yes
- Test diode: yes
- Hz:
+ Ranges: 600 Hz / 6 kHz / 50 kHz
+ Resolution: 0.1 Hz to 10 Hz
- Capacity:
+ Ranges: 6 nF / 60 nF / 600 nF / 6 μF / 60 μF / 600 μF / 6 mF / 60 mF
+ Resolution: 0.001 nF (1pF) to 10 μF
- T°:
+ Ranges: -59.6 °C to +1,200 °C
+ Resolution: 0.1° to 1 °
- Hold: yes
- Automatic power-off: yes
- Power supply: 1 x 9 V
- Dimensions / weight : 90 x 190 x 45 / 400 g

State at delivery: delivered with a set of banana leads, a set of test probes, a 9 V battery and
a CD containing the operating manual and the start-up guide + additional K thermocouple temperature sensor
