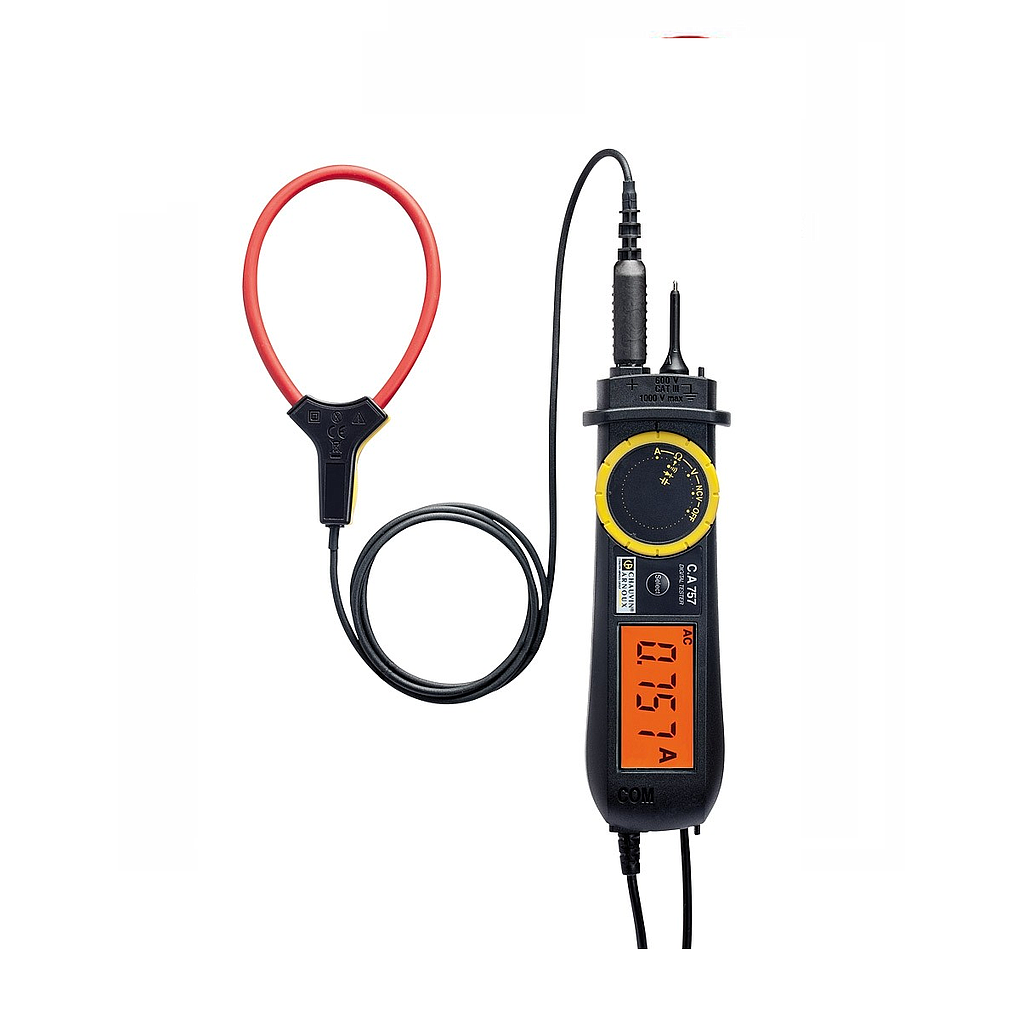

Chauvin Arnoux C.A 757 Voltage Testers

-Current tests
+Measurement range via current sensor : 500 mA to 300 A (2 calibres)
+Resolution: 0.01 A to 0.1 A
- DC voltage
+Measurement range: 3 mV to 1,000 V – 4 calibres
+Resolution: 1 mV to 1 V
- AC voltage
+Measurement range: 100 mV to 1,000 V – 4 calibres
+Resolution: 1 mV to 1 V
- Operating frequency: DC and 50/60 Hz
- Impedance: 10 MΩ
- No-contact voltage detection: With 230 V 50/60 Hz at a distance of approx. 5 cm
- Audible continuity test: R ≤ 30 Ω
- Resistance test
+Measurement range: 0.3 Ω to 30 MΩ– 6 calibres
+Resolution: 0.1 Ω to 0.01 MΩ
- Capacitance tests
+Measurement range: 400 pF to 30 mF
+Resolution: 0.001 nF to 0.01 mF
- Standards: 600 V CAT III, IEC 61010-1, IEC 61010-031, IEC 61010-032, IEC 61010-033
- Power supply: 2 x 1.5 V LR03 batteries
- Battery life: 100 hours with alkaline batteries. Automatic standby mode after 10 minutes
- Dimensions / weight: 180 x 52 x 45 mm / 200 g

State at delivery: delivered with a soft case, 1 set of extra-fine test probes CAT III/CAT IV (red/black), 2 x 1.5 V AAA / LR3 alkaline batteries,1 MiniFlex® sensor with a loop length of 250 mm, a connection cable 1 m long and a specific connector for C.A 757, 1 Velcro strap
Accessories & Replacement Parts:
- 1 set of black/red CAT III/IV test probes P01102152Z
- 1 set of black/red Ø 2 mm test probes, CAT II P01102153Z
- 1 set of black/red Ø 4 mm test probes, CAT II P01102154Z
- C.A 753 adapter for 2P+E sockets P01191748Z
- Velcro strap x 5 P01102113
- 1.5 V LR3/AAA alkaline battery (x 1) P01296032
- Bag compatible with MultiFix accessory, 120 x 200 x 60 P01298074
- MultiFix mounting accessory P01102100Z
- MA101-250 current sensor for C.A 757 P01120591
