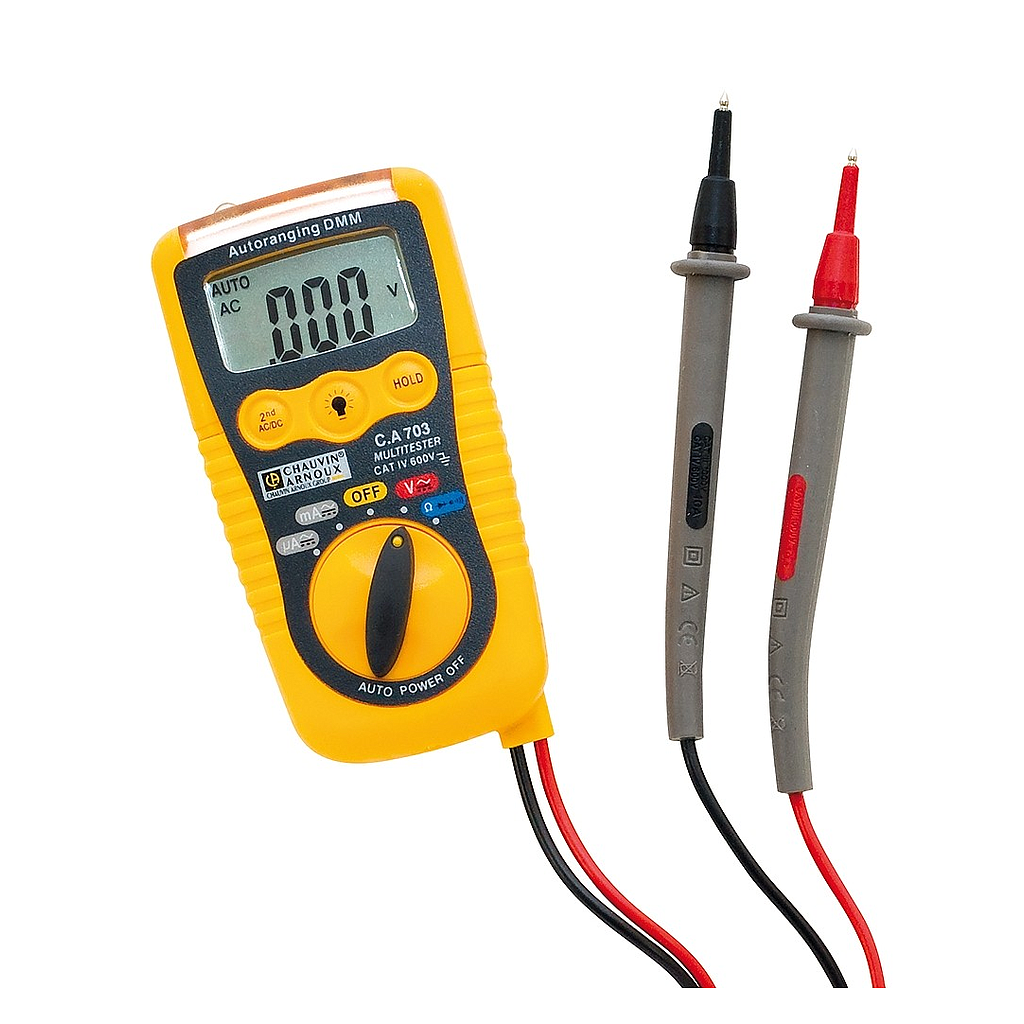

Chauvin Arnoux C.A 703 Digital Multimeter

- V DC / precision : 2.000 V; 20.00 V; 200.0 V; 600 V / ±1.2 % L + 3 D; > 600 V / outside specification
- V aC / precision (40-400 Hz): 2.000 V; 20.00 V / ±1.0 % L + 8 D; 200.0 V; 600 V / ±2.3 % L + 10 D ; > 600 V / outside specification
- I DC / precision: 200.0 μA; 2000 μA / ±2.0% L + 8 D; 20.00 mA; 200.0 mA / ±2.0% L + 8 D
+Protection: 200 mA / 500 V electronic fuse
- I aC / precision: 200.0 μA; 2000 μA / ±2.5% L + 10 D; 20.00 mA; 200.0 mA / ±2.5% L + 10 D
+Protection: 200 mA / 500 V electronic fuse
- Resistance / precision : 200.0 Ω/ ±0.8 % L + 5 D 2.000 kΩ. 20.00 kΩ. 200.0 kΩ/±1.2 % L + 5 D 2.000 MΩ/±5.0 % L + 5 D20.00 MΩ/ ±10.0 % L + 5 D
+Protection: 600 V rms
- Diode test: 1.999 V
+ Test alarm: V Test ≤ 1.5 V I Test ≤ 1.5 A
+ Protection : 600 V rms
- Continuity sound test : 199. 9 Ω
+ Buzzer : R < approx. 60 Ω
+ Protection: 600 V rms

Thiết bị tiêu chuẩn: 2 cords with probe tips, 2 x 1.5 V AAA batteries, and operating manual.
