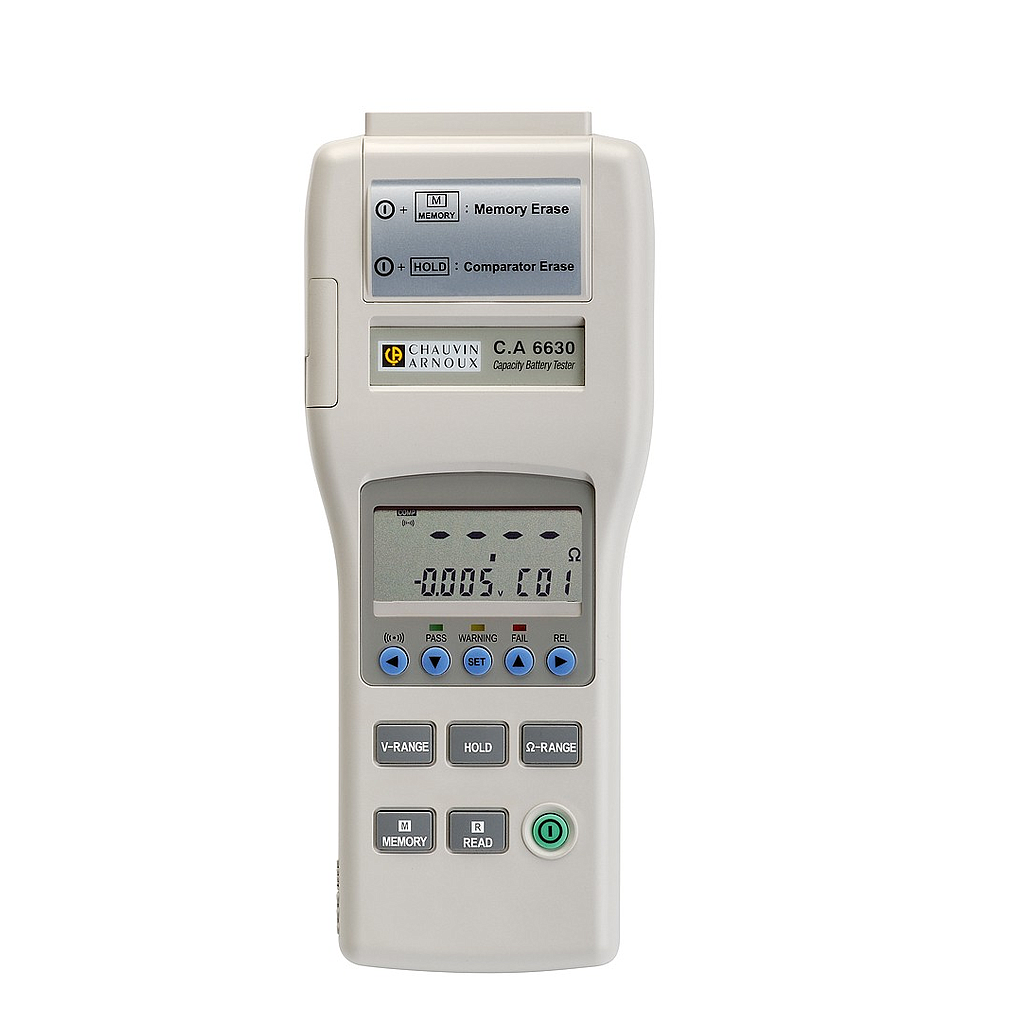

Chauvin Arnoux C.A 6630 Battery capacity tester

- LCD screen with 2 displays and numerous symbols
- measurement of resistance: t° coeff.: ± (0.1% of L + 0.5 digits) / °C
- measurement current: 1.5 mVAC / Measurement frequency: 1 kHz ± 10 %
+ Range/ Resolution/ Measurement current/ Accuracy: 40 mΩ / 10 μΩ / 37.5 mA/ ± (1 % of L + 8 digits)
+ Range/ Resolution/ Measurement current/ Accuracy: 400 mΩ/ 100 μΩ/ 3.75 mA/ ± (1 % of L + 8 digits)
+ Range/ Resolution/ Measurement current/ Accuracy: 4 Ω/ 1 mΩ/ 375 μA/ ± (1 % of L + 8 digits)
+ Range/ Resolution/ Measurement current/ Accuracy: 40 Ω/ 10 mΩ/ 37.5 μA/ ± (1 % of L + 8 digits)
- measurement of voltage: t° coeff.: ± (0.1% of L + 0.5 digits) / °C
+ Range/ Resolution/ Accuracy: 4 V/ 1 mV/ ± (0.1 % of L + 6 digits)
+ Range/ Resolution/Accuracy: 40 V/ 10 mV/ ± (0.1 % of L + 6 digits)
- powered by 6 x 1.5 V batteries – continuous autonomy: 7 hours
- maximum power consumed: 1 VA
- dimensions: 250 x 100 x 45 mm
- weight: 500 g, including batteries

State of delivery:
- A set of 2 x 1-m long measurement leads with retractable test probe tips
„- Data transfer software for exporting and processing stored data on a PC
„- C.A 6630 / PC connection cord
„- Instruction manual in 5 languages
