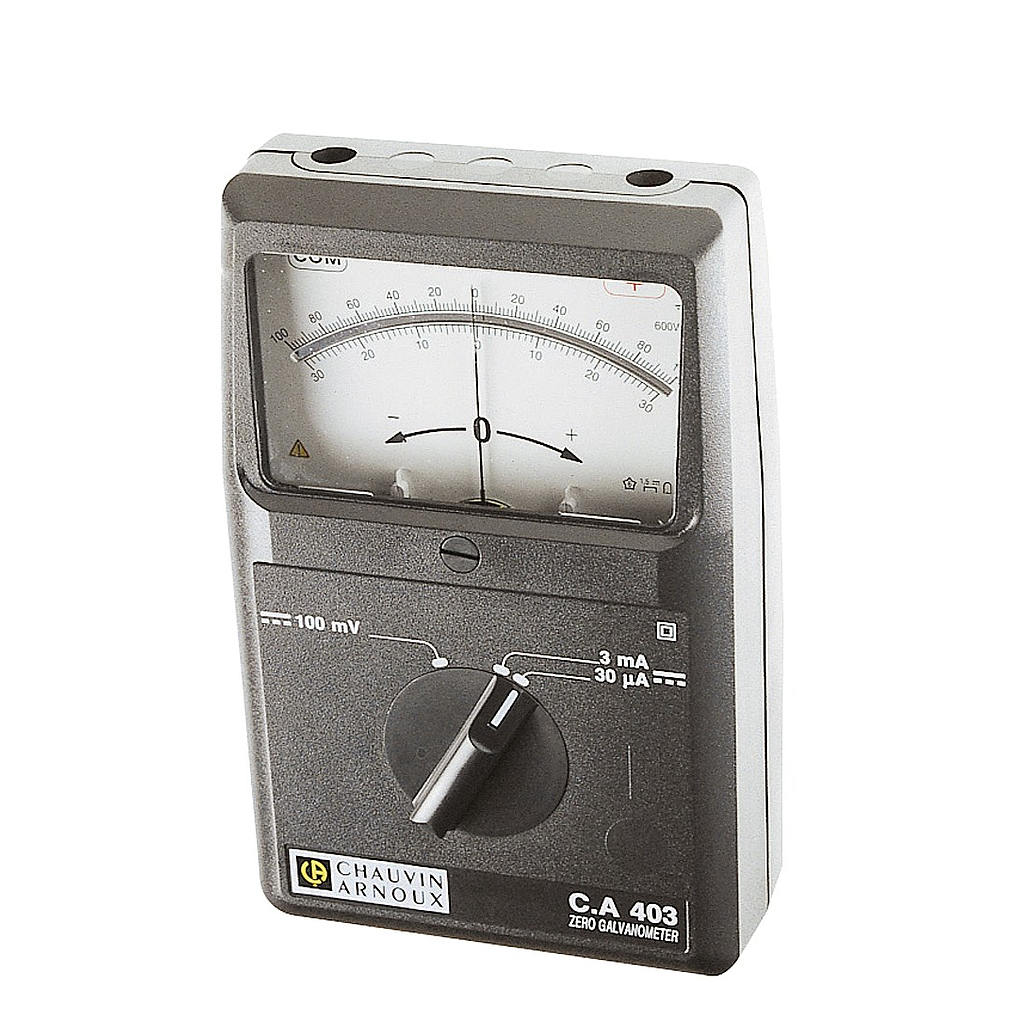

Chauvin Arnoux C.A 403 Galvanometer with central zero (100mVDC; 30μADC; 3mAAC)

- Magneto-electric equipment with rectifier
+ 2 ranges: 30 μA DC and 3 mA AC
+ 100 mV DC range for shunts
- Accuracy : ± 1.5 %
- Dial: 2 black scales (0 to 30 and 0 to 100)
- Dimensions and weight : 165 x 105 x 50 mm – 450 g
- Electrical safety: 600 V CAT III as per IEC/EN 61010-1 Edition 2


Accessories:
- Shockproof sheath P01298016
-Spare fuses (set of 10) 1 A HRC 380 V 50 kA fuse P03297507
+10 A HRC 380 V 50 kA fuse P03297510
+315 mA HRC 380 V 50 kA fuse P03297509
+1.25 A HRC 380 V 50 kA fuse P01297015
+6.3 A HRC 380 V 100 kA fuse P01297016
+3.15 A HRC 380 V 50 kA fuse P01100726
+160 mA 380 V 50 kA fuse P03297508
